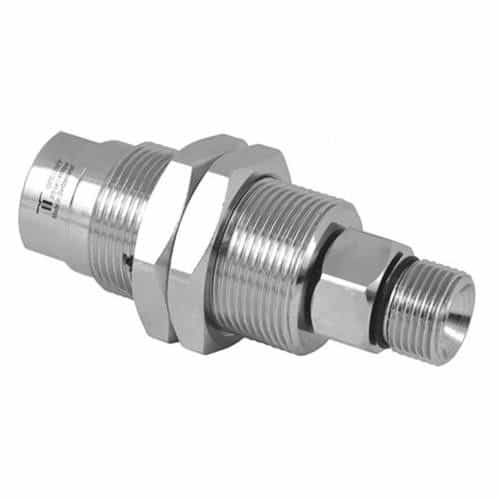

Mosmatic 57.163 DYG Swivel with Bulkhead Fitting - 3/8 in. F x 3/8 in. M

Mfr. Model #:
KR Part #:
0.55 lbs
Low Stock Warning
Add to Cart for Price
A high speed rotary union for surface cleaners,tire cleaners and other self-rotating applications. Corrosion resistant swivel features bulkhead fitting for mounting.

Technical Specifications

Max PSI: 4000
Min Temperature: 250 degrees F
Inlet Port: 3/8 inch
Outlet Port: 3.8 inch
Max Temperature: 250 degrees F

Product Description

Self-Rotating, Single Flow Swivel

The Mosmatic 57.163 DYG swivel is used for applications like high-pressure cleaning technology, parts washers, tire cleaners, and self-rotating applications. This nickel-plated brass swivel is corrosion resistant, has a bulkhead fitting for mounting, and boasts a high-speed triple bearing system. Technical details include 3/8" male and female ports, an NBR O-ring, two radial ball bearings, and a thrust ball bearing.


  • High-speed triple bearing system
  • Bulkhead fitting
  • Corrosion resistance
  • Highest quality and precision
  • Maintenance-free

Technical Specifications:

  • 4000 PSI maximum pressure
  • 250° Fahrenheit maximum temperature
  • Nickel-plated brass body
  • Stainless steel internal components
  • NBR O-ring
  • (2) Radial ball bearings
  • (1) Thrust ball bearing
  • Throughput medium: pH 3-12, filtered 10 microns compressed air
