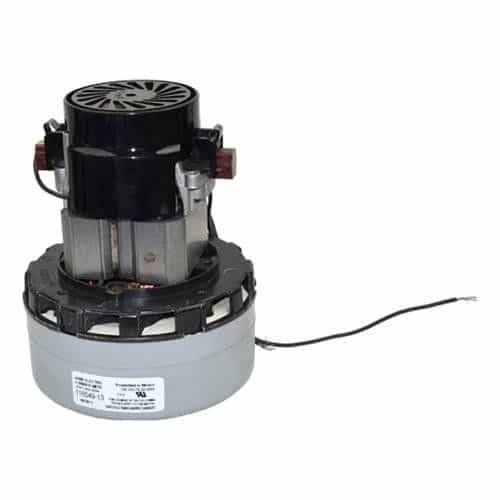

Lamb-Ametek 116549-13 Two-Stage 240V Commercial Car Vacuum Motor - 6.5 Amps

Mfr. Model #:
KR Part #:
5.06 lbs
Low Stock Warning
Now Only!
Two stage replacement motor for car wash vacuums. 240 volt, 6.5 amps. Equipped with an ACUSTEK© bypass discharge system.

Technical Specifications

Amps: 6.5
CFM: 116
Voltage AC: 240

Product Description

Industrial Vacuum 240 Volt Replacement Motor


When one of your vacuum motors is not functioning, swapping in a new motor is a less costly option than replacing the entire vacuum unit. This Lamb-Ametek 116549-13 motor will have your car wash vacuum back to full functionality in no time! It is a two-stage, 240 volt, 6.5 amp motor measuring 5.7" in diameter. Boasts dual ball bearings, an ACUSTEK¨ bypass discharge, and a skeleton frame design.

  • Two stage
  • 240 volts
  • 50/60 Hz
  • ACUSTEK¨ low-noise peripheral bypass discharge
  • Thermoset fan end bracket
  • Aluminum commutator bracket
  • Motor Type: Bypass
  • Discharge: Acustek
  • Bearings: Double Ball Bearing
  • Sealed Vacuum: 90.6 inches
  • Maximum Air Watts: 332
  • Maximum Air Flow: 116 CFM
  • Maximum Amps: 6.5
  • Motor Speed: 19,357 RPM
  • UL Listed
