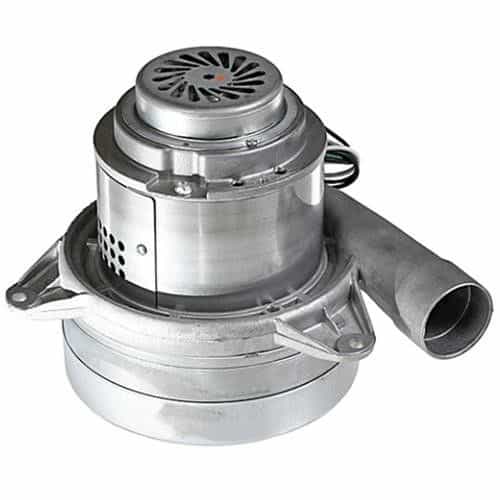

Lamb Ametek 115937 Tangential Bypass Discharge Vacuum Motor - 7.2 In, 2 Stage, 1 Speed, 120V

Brand:
Mfr. Model #:
115937
KR Part #:
VAL5937
Weight:
8.50 lbs
Drop Shipped Item
MSRP
$507.33
Now Only!
$354.99
For use with equipment operating in environments requiring separation of working air from ventilating air. Designed to handle lean, dry, filtered air only. Utilizes a tangential discharge system.



Technical Specifications

CFM: 105.4
Voltage AC: 120
Watts: 392
RPM: 17200

Product Description

Electric 2 Stage Motor

A motor featuring a tangential bypass discharge system. Utilizes double ball bearings. Used for equipment operating in environments requiring separation of working air from motor ventilating air. Engineered for handling clean, dry, filtered air only.

Features:

  • Two stage
  • 7.2" / 183 mm diameter
  • Double ball bearings
  • Single speed
  • Tangential bypass discharge
  • Aluminum fan end bracket
  • Aluminum commutator bracket
  • 10 mm shaft and bearing system
  • Epoxy painted fan case
  • UL recognized PRGY2 (E47185)
  • CL certified, class 1611 01 (LR31393)
Specifications:
  • Sealed Vacuum: 110 inches
  • Maximum Air Watts: 392
  • Maximum Air Flow: 105.4 CFM
  • Motor Speed: 17,200 RPM
  • Voltage: 120 VAC
