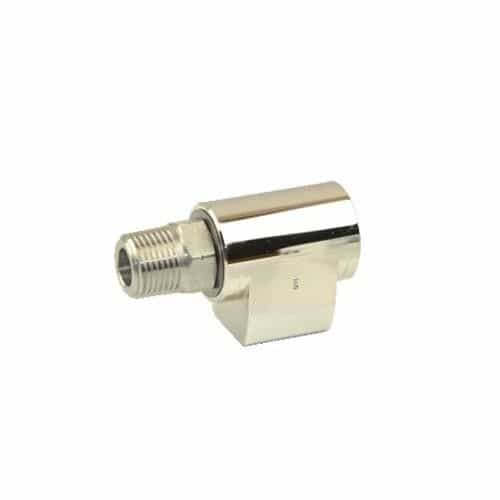

Mosmatic 43.363 Nickel Plated Brass 90 Degree WDCL Rotary Union Swivel - G1 1/2in NPTF, G2 1/2in NPTM, 4000 PSI

Brand:
Mfr. Model #:
43.363
KR Part #:
SWM43363
Weight:
0.65 lbs
Availability:
5
Low Stock Warning
Add to Cart for Price
A swivel with radial ball bearings used for ceiling booms in self-serve bays. Nickel plated brass construction. Handles a maximum pressure of 4000 PSI.



Technical Specifications

Max Temperature: 250 degrees F
Max PSI: 4000
RPM: 200
Inlet Port: 1/2 inch
Outlet Port: 1/2 inch

Product Description

Dual Bearing Swivel

Mosmatic 43.364 is equipped with a radial dual bearing system designed for compatibility with speeds of 200 RPM. Constructed with nickel plated brass and stainless-steel inner components. Designed for use in celling booms, high pressure hose reels, and high-pressure cleaners. Tolerates a maximum pressure of 4000 PSI and a maximum temperature of 250 degrees Fahrenheit.

Specifications:

  • Pressure: 4000 PSI (27.5 MPa)
  • Temperature: 250°F
  • RPM: 200
  • Body: Brass, Nickel Plated
  • Inner Part: Stainless Steel
  • Seal: O-Ring NBR (Optional: EPDM or FKM)
  • Bearing: WDC: Sliding Bearing, WDCL: 2x Radial Ball Bearings, WDCS: 2x Radial Ball Bearings
  • Throughput: pH 3-12
  • Medium: Filtered 10 Microns, Compressed Air (290 PSI)

Dimensions:

  • G1 (F): 1/2" NPTF
  • G2 (M): 1/2" NPTM
  • NW: 1/2"
  • H: 1.81
  • L1: 1.77
  • L2: 1.14
  • L3: 2.87
  • L4: 1.97
  • L5: 0.59
  • SW1: 0.87
  • Weight: 0.65 lbs.

Features:

  • Slide or dual bearings systems
  • Stainless steel
  • Maintenance free

Applications:

  • High Pressure Hose Reels
  • Celling Booms
  • High Pressure Cleaner
