90° Low RPM Swivel

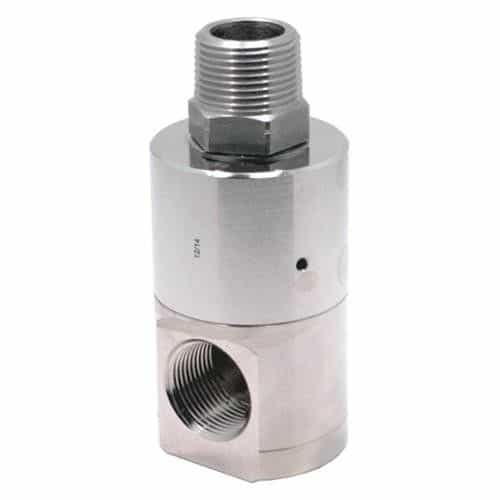

A rotary union manufactured by Mosmatic with a nickel-plated brass body and stainless-steel inner part. Handles a maximum of 4000 PSI and 30 RPM. Designed for maintenance free operation. Great for high flow applications in car wash systems and high-pressure hose reels.

Specifications:

• Pressure: 4000 PSI (27.5 MPa)
• Temperature: 250°F
• Maximum RPM: 30
• Body: Brass, Nickel Plated
• Inner Part: Stainless Steel
• Seal: O-ring NBR (Optional: EPDM or FKM)
• Bearing: 1x Thrust Ball Bearing, 1x Radial Ball Bearing
• Throughput: pH 3-12
• Medium: Filtered 10 Microns, Compressed Air (290 PSI)

Features:

• Maintenance free
• Sealed stainless steel bearings
• High flow

Dimensions:

• G1: (F) 3/4" NPTF
• G2: (M) 3/4" NPTM
• NW: ¾"
• SW1: 1.06
• L1: 4.09
• L2: 2.26
• L3: 0.63
• L4: 0.75
• D1: 1.97
• Weight: 35.7 oz

Applications:

• High Flow
• Low Rpm
• Automatic Car Wash Systems
• High Pressure Hose Reels
