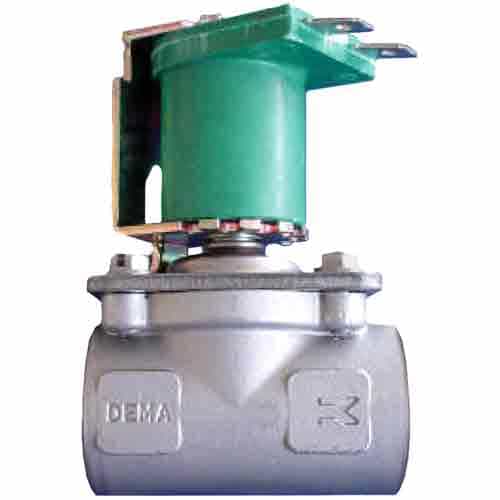

Mini Diaphragm Solenoid Valve with 120VAC Coil

This normally closed solenoid valve opens once the electrical coil is energized. Use it for water, air, light oil, noncorrosive, and non-explosive liquids. This valve has an EPDM diaphragm. It's rated for 180 degrees Fahrenheit fluid and 120 degrees Fahrenheit ambient.

Specifications:

• Stainless steel body material
• 3/8" pipe size NPT
• Normally closed
• EPDM diaphragm
• 120VAC coil
• 125 PSI max pressure
• NSF Standard 61 approved
