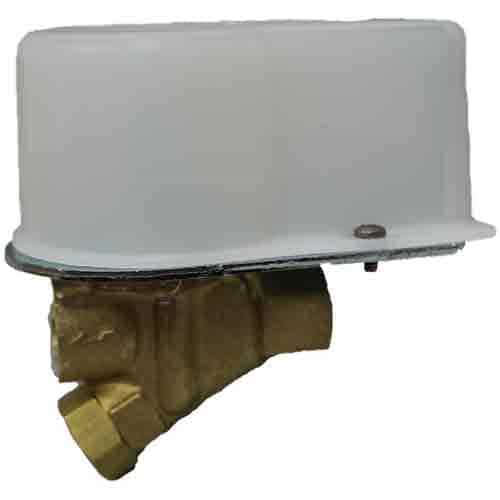

Dema 443PJ.3 Brass Body Diaphragm 24VAC Solenoid Valve with Bracket and Cover - 3/8 inch, Normally Closed

Mfr. Model #:
KR Part #:
1.60 lbs
Usually Ships in 2 Weeks
Now Only!
Brass construction solenoid valve with normally closed operation. Boasts 3/8 pipe connections and diaphragm plunger. 24 volt AC, 150 PSI max pressure, 180 degrees F max temperature.
Prep 65

Prop 65


Technical Specifications

Voltage AC: 24
Max PSI: 150
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch
Max Temperature: 180 degrees F

Product Description

3/8" Brass Diaphragm Operation Solenoid Valve - 24VAC

The Dema 443PJ.3 Diaphragm Solenoid Valve is a brass body valve with 3/8" pipe connections and normally closed operation. It can be mounted horizontally, vertically, or on its side. This solenoid valve is intended for use with water, air, light oil, and other non-corrosive fluids.

Operation Instructions:

  • When the coil on this Dema diaphragm type solenoid is energized, the plunger is pulled up. This opens the small "pilot port" in the center of the diaphragm plate. This releases the pressure on top of the diaphragm allowing incoming pressure to lift it off the larger center port.  When the coil is de-energized the solenoid plunger is pushed down by the kick-off spring and closes the pilot port.  Fluid passes through the small diaphragm bleed hole until pressure is equalized on both sides of the diaphragm to shut off the larger port.


  • Brass body material
  • 3/8" N.P.T. pipe size
  • Cv flow factor: 1
  • Maximum Operating Pressure differential:  125 PSI
  • Safe Working Pressure: 150 PSI
  • Normally closed
  • Maximum Temperature: 180 degrees Fahrenheit
  • Maximum Ambient Temperature: 120 degrees Fahrenheit
  • Coil Voltage: 24 volt AC
  • Power: 10 watts
  • Weight: 1.6 lbs.

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to
