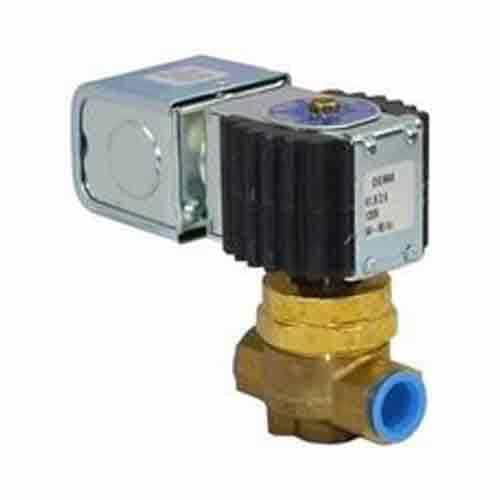

Dema A414P.9 1/2 in. Low Pressure Solenoid Valve with 240V AC Coil

Brand:
Mfr. Model #:
A414P.9
KR Part #:
SOD414P240
Weight:
2.40 lbs
Usually Ships in 2 Weeks
MSRP
$113.15
Now Only!
$73.55
This A414P solenoid valve body has a 240V AC coil and maximum pressure of 150 PSI.
Prep 65

Prop 65




Technical Specifications

Max PSI: 150
Voltage AC: 240

Product Description

1/2" Normally Closed Solenoid Valve Body - 150 PSI

This is a solenoid valve body with no coil. It is designed for use with water, air, light oil, and noncorrosive fluids. Do not use for gas and other hazardous or explosive fluids.

With this A414P model, the stem and plunger assembly opens the port. This releases pressure on top of the piston, which opens the main valve port. Dema pilot-piston solenoid valves are available for 3/8" to 1" pipes: see Related Products section.

Size: 1/2" NPT

  • Rated for 200 degrees Fahrenheit fluid temp. and 120 degrees Fahrenheit ambient temp.
  • CV flow factor: 3.10
  • Orifice diameter: 0.438
  • Brass construction
  • Maximum pressure: 150 PSI
  • 240V AC coil
  • Normally closed

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to www.p65warnings.ca.gov).
