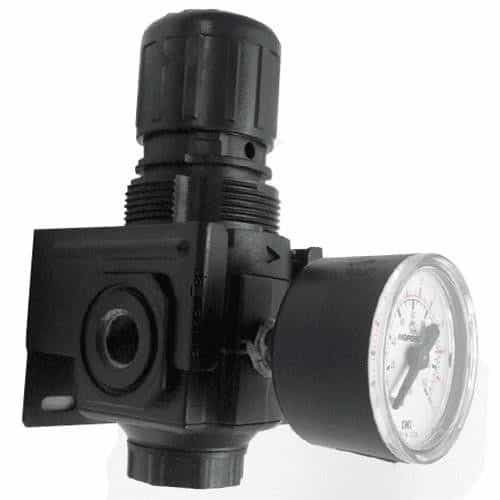

Norgren R72G-2AK-RMG Excelon Pressure Regulator With Gauge - 1/4in.

Brand:
Mfr. Model #:
R72G-2AK-RMG
KR Part #:
REN2213
Weight:
1.00 lbs
GTIN:
746350161977
In Stock
MSRP
$81.02
Now Only!
$55.27

Norgen R72G series pressure regulator with uni-directional flow, PTF threads, knob adjustment, and relieving diaphragm. Use to modulate 5 to 150 psig outlet pressure adjustment range, with maximum operating temperature of 300 PSI. Includes gauge for easy reading.




Technical Specifications

Max PSI: 300
Inlet Port: 1/4 inch
CFM: 70
Min Temperature: 30 degrees F
Max Temperature: 150 degrees F

Product Description

R72G Series Pressure Relieving Regulator

The Norgren R72G series regulator is part of the Excelon modular system. This system allows for inline or modular installation of air preparation components for easy mix, match, and adjustment of your system. Features uni-directional flow, PTF threads, knob adjustment, and relieving diaphragm. Included gauge provides for highly visible readings.

Specifications

  • Maximum Pressure: 300 PSI
  • Operating Temperature -30°F to 150°F
  • Port Size: 1/4"
  • Weight: 0.79 lb
