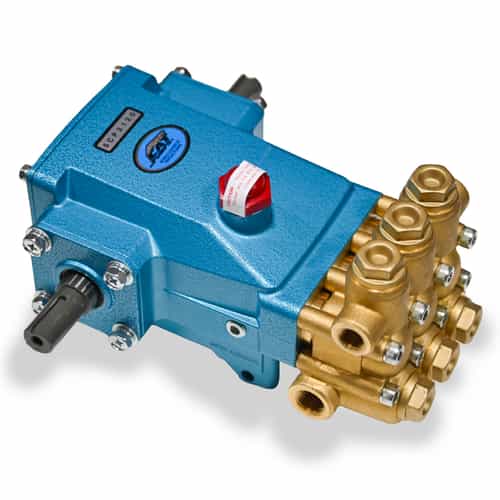

CAT Pumps 5CP3120 Industrial Triplex Plunger Pump - 4.5 GPM, 3500 PSI, 1645 RPM
Brand:
Mfr. Model #:
5CP3120
KR Part #:
PU5CP3120
Weight:
21.80 lbs
Low Inventory Get It Today
This plunger pump is designed to handle industrial application. Features press-in seal cases make servicing the valves easy. Pump produces a maximum flow rate of 4.5 GPM. Rails and shaft cover sold separately.
NOTE: This pump does NOT come with oil
Technical Specifications
Bore: 16 millimeter
Shaft Diameter: 20 millimeter
Stroke: 18 millimeter
RPM: 1645
Max Temperature: 160 degrees F
Crankcase Capacity: 17 ounce
Inlet Port: 1/2 inch
Max GPM: 4.8
Product Description
5CP Plunger Pump
The CAT Pumps 5CP3120 is a triplex plunger pump engineered for industrial applications making it great for demanding car washes. Constructed with a brass manifold, 304 stainless steel valve assemblies, solid ceramic plungers and standard NBR (Buna-N) seals and O-rings. Compatible with motors that connect to a compact direct-drive mount bell housing with a flexible coupling. Servicing the valve assemblies is easy thanks to press-in seal cases.
Note: Rails and shaft cover sold separately
Specifications:
- Max Flow: 4.5 GPM
- Max Pressure: 3500
- Inlet Port Size: 1/2" NPT(F)
- Discharge Port Size: 3/8" NPT(F)
- RPM: 1645
- Stroke: 0.709"
- Inlet Pressure Range: -2.5 to 60 PSI
- Max. Liquid Temp. (NBR): 160° F
- Bore: 0.630" (16 mm)
- Crankcase Capacity: 17 oz.
- Inlet Ports (2): 1/2" NPT(F) 1/2" NPT (F)
- Discharge Ports (2): 3/8" NPT (F) 3/8" NPT (F)
- Shaft Diameter: 0.787"
- Drive Type(s): Belt, Clutch, Flexible Coupling and Bellhousing
- Material: Brass
- Dimensions: 10.90 x 10.0 x 5.79"
- Weight: 21.80 lbs.
- Please note that this pump does NOT come with oil - find genuine CAT Pumps Oil here.
Product Reviews
Frequently Asked Questions
Question:Need this Pump with all the equimpent to workl..
pressure release valve , pulley , raill base .
please help me on this matter thanks
-
Julio
(08/16/2023)
Response:Hi Julio, please contact our sales department for your different options and pricing, our sales team can help you get the right equipment and configurations for your wash. Please call 800-233-3873.
Question:What pulley, pulley shaft key, and mount goes with this pump?
-
Mylinda
(03/15/2021)
Response:There are different options, please contact our sales department for your different options and pricing 800-233-3873.
