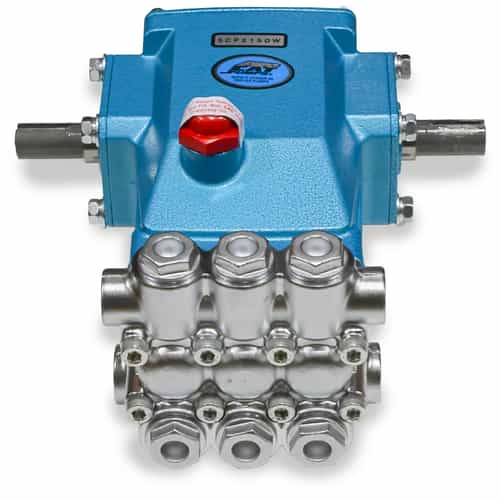

CAT Pumps 5CP2150W Triplex Plunger Pump - 5 GPM, 2000 PSI, 1725 RPM

Brand:
Mfr. Model #:
5CP2150W
KR Part #:
PU5CP2150W
Weight:
20.60 lbs
Low Stock Warning
MSRP
$1,431.00
Now Only!
$699.18

Manifold washout? Not anymore, with the CAT Pump 5CP2150W. It features their washout-resistant W770 manifold built with materials that resist corrosive car wash chemicals. This pump produces a maximum flow rate of 5 GPM and a pressure of 2000 PSI.

Note: Shaft protectors and rails are not included and must be purchased separately.




Technical Specifications

Bore: 20 millimeter
Shaft Diameter: 20 millimeter
Stroke: 18.85 millimeter
RPM: 1725
Max Temperature: 160 degrees F
Max PSI: 2000
Max GPM: 5
Inlet Port: 1/2 inch
Crankcase Capacity: 17 ounce

Product Description

CAT 5CP2150W Washout Resistant Pump

Designed specifically for car wash applications where washout is a common problem for pumps, the CAT Pump 5CP2150W features their special "W770" Series brass manifold. This manifold is constructed with corrosion-resistant alloys and a chrome-plated finish that ensures this pump will endure the harsh chemicals used in the carwash industry. Plus, it has 304 stainless steel valve assemblies, and solid ceramic plungers that help this pump withstand corrosive chemicals. Standard versions of the 5cp2150w ship with NBR (Buna-N) seals and O-rings. Thanks to its 1725 RPM speed rating, the CAT 5cp2150w is compatible with direct drive applications that involve the use of a bell housing and flexible coupling, clutch, or belt drive.

Specifications:

  • Direct drive, triplex plunger model
  • Maximum flow: 5.0 GPM
  • Pressure range: 100 - 2000 PSI
  • Maximum speed: 1725 RPM
  • Maximum fluid temperature: 160° F
  • (2) inlets: 0.5" NPTF each each
  • (2) outlets: 3/8" NPTF each
  • Bore size: 0.787"
  • Stroke length: 0.742"
  • Dimensions: 10.35" x 10.0" x 5.78"
  • CAT Pumps item #5CP2150W
  • Weight: 19.14 lbs.
