CAT 5CP2140WCS Plunger Pump 4 GPM, 2500 PSI, 5 HP

Mfr. Model #:
KR Part #:
20.20 lbs
Low Stock Warning
Now Only!

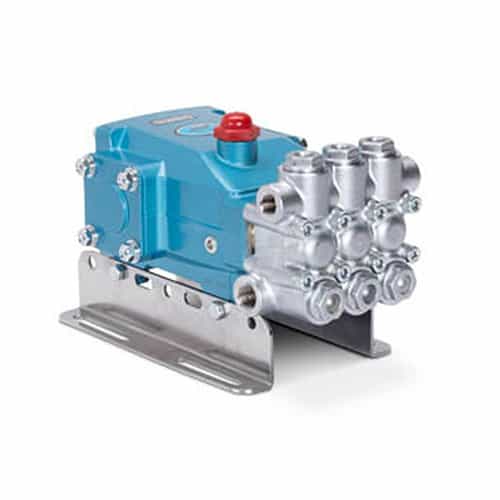

This CAT Pump 5CP2140WCS  triplex plunger pump is designed to deliver smooth pulsation flows at a variety of pressures and flow rates. Brackets not included.

Technical Specifications

Horsepower: 5
Bore: 20 millimeter
Crankcase Capacity: 17 ounce
Shaft Diameter: 20 millimeter
RPM: 1725
Max Temperature: 160 degrees F
Min PSI: 100
Max PSI: 2500
Stroke: 10 millimeter
Max GPM: 4
Inlet Port: 1/2 inch

Product Description

 4 GPM - 2500 PSI - 1725 RPM - 5 HP

Cat Pumps are the most popular direct-drive plunger pumps for self-service bays. They are the leading and long-lasting pump choice in car wash equipment. Known for easy maintenance and years of hassle-free operation. Used in high-pressure applications, such as car and tuck washes, pressure washing, water misting, and more.

Dimensions: 10.35" x 10" x 5.78"

  • Inlet Ports (2): 1/2" NPTF (1/2" NPTF)
  • Discharge Ports (2): 3/8" NPTF (3/8" NPTF)
  • Triplex plunger design provides smoother liquid flow
  • Hi-pressure seals are completely lubricated and cooled by the liquid being pumped
  • Inlet and discharge valve assemblies interchange for easy maintenance
  • Lubricated lo-pressure seals offer double protection against external leaks
  • Oil bath crankcase
  • Concentric, solid ceramic plungers provide extended seal life
  • Oversized crankshaft bearings with greater capacity for longer bearing life
  • Wet-end is easily serviced without entering crankcase, requiring less time and effort
