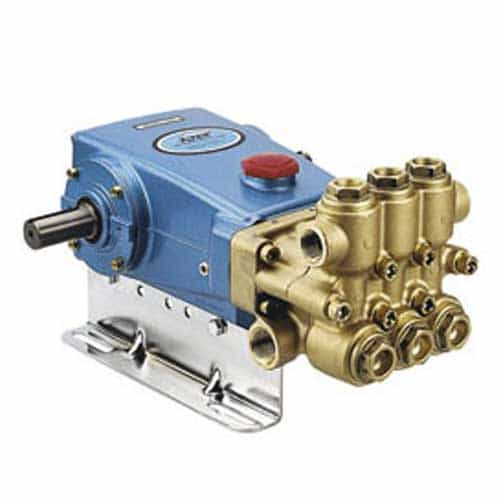

CAT Pumps 1530 Industrial-Duty 15-Frame Plunger Pump, 15.6 GPM, 1500PSI

Brand:
Mfr. Model #:
1530
KR Part #:
PU01530
Weight:
57.00 lbs
Availability:
1
Low Stock Warning
MSRP
$4,646.00
Now Only!
$2,378.75
High performance, long-lasting and dependable positive displacement triplex plunger pump. Forged brass manifold, 304SS stacked valve assemblies, concentric solid ceramic plungers and Buna-N seals and O-rings. Higher capacity pump is perfect for multi-gun, multi-nozzle, and high-pressure systems.



Technical Specifications

Crankcase Capacity: 42 oz.
Max GPM: 15.6
Max PSI: 1500
Max Temperature: 140 degrees F
RPM: 1450
Amps: 25 millimeter
Stroke: 30 millimeter
Shaft Diameter: 30 millimeter
Inlet Port: 1 inch
Outlet Port: 3/4 inch

Product Description

CAT 1530 15 Frame Plunger Pump

One of the most popular pumps in the car wash and pressure washing industries, the CAT Pumps 1530 is a high performance, long-lasting and dependable positive displacement triplex plunger pump. It features a forged brass manifold, 304SS stacked valve assemblies, concentric solid ceramic plungers and Buna-N seals and O-rings for excellent reliability and resilience using chemicals. This higher capacity pump is perfect for multi-gun, multi-nozzle, and high-pressure systems.

Dimensions: 17.24" x 13.0" x 7.4"

Features

  • Triplex plunger design for smoother liquid flow.
  • V-Packings are completely lubricated and cooled by the liquid being pumped for unmatched performance and seal life.
  • Inlet and discharge valve assemblies interchange for easier maintenance.
  • Lubricated Lo-Pressure Seals provide double protection against external leakage.
  • Oil bath crankcase assures optimum lubrication.
  • Precision design 304 and 316 stainless steel valves and seats are hardened and polished for ultimate seating and extended life.
  • Forged Brass or Stainless Steel manifolds are strong and corrosion resistance.
  • Special concentric, high-density, polished, solid ceramic plungers provide a true wear surface and extended seal life.
  • Die cast aluminum crankcase provides high strength, minimum weight and precision tolerance control.
  • Chrome-moly crankshaft gives unmatched strength and surface hardness.
  • Oversized crankshaft bearings with greater loading capacity mean longer bearing life.
  • Easy Maintenance thanks to a wet-end accessible without entering crankcase, requiring less time and effort.
  • Preset packings mean no packing gland adjustment is necessary, reducing maintenance costs.

Specifications

  • Maximum Flow: 5.6 GPM
  • Maximum Pressure: 1500 PSI
  • Maximum Liquid Temperature: 140°F
  • Pump RPM: 1450 RPM
  • Inlet Ports: (2) 1" NPT(F)
  • Outlet Ports: (2) 3/4" NPT(F)

Product Reviews

Frequently Asked Questions

Question:I am looking for a fluid end repair kit. Is there one available? - Kelly (05/08/2020)
Response:Below is the link to the kit. It is our part number PU31355 https://www.kleen-ritecorp.com/p-15864-cat-pump-31355-seal-kit-w-ss-spring-for-1530-1531-pumps.aspx
