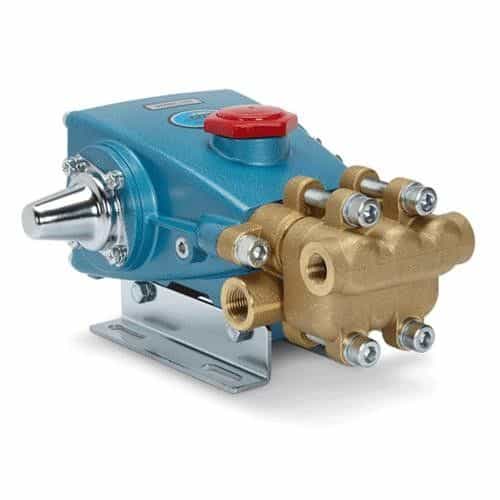

CAT 240 Ceramic Plunger Pump 3.6GPM 1200PSI

Brand:
Mfr. Model #:
240
KR Part #:
PU00240
Weight:
14.80 lbs
Out of Stock - Pre-Order Now
MSRP
$1,150.00
Now Only!
$588.80
Brackets not included!



Technical Specifications

Crankcase Capacity: 15 oz.
Max GPM: 3.6
Max PSI: 1200
RPM: 1725
Max Temperature: 160 degrees F
Bore: 18 millimeter
Stroke: 11 millimeter
Shaft Diameter: 16.5 millimeter
Inlet Port: 1/2 inch

Product Description

1200PSI Ceramic Plunger Pump

Superior Design

  • Triplex plunger design provides smoother liquid flow.
  • Hi-Pressure Seals are completely lubricated and cooled by the liquid being pumped.
  • Inlet and discharge valve assemblies interchange for easier maintenance.
  • Lubricated Lo-Pressure Seals provide double protection against external leakage.
  • Oil bath crankcase assures optimum lubrication.
  • Close tolerance concentricity of the ceramic plunger maximizes seal life.
  • Optional Belt Drive or Motorized versions offer system flexibility.

Quality Materials
  • Precision design 304 stainless steel valves and seats are hardened and polished for ultimate seating and extended valve life.
  • Brass manifold is strong and corrosion resistant.
  • Special concentric, high-density, polished, solid ceramic plungers provide a true wear surface and extended seal life.
  • Specially formulated, CAT PUMP exclusive, Hi-Pressure Seals offer unmatched performance and seal life.
  • Die cast aluminum crankcase provides high strength, minimum weight and precision tolerance control.
  • Chrome-moly crankshaft gives unmatched strength and surface hardness.
  • Oversized crankshaft bearings with greater capacity mean longer bearing life.

Easy Maintenance
  • Wet-end is easily serviced without entering crankcase, requiring less time and effort.
  • Preset packings mean no packing gland adjustment is necessary, reducing maintenance costs.
