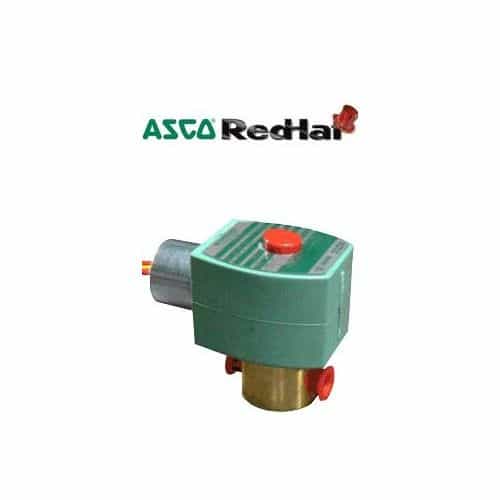

ASCO 8262H208 Brass 2-Way Normally Closed Solenoid Valve - 24VAC, 1/4 In Ports
Brand:
Mfr. Model #:
8262H208 24/60
KR Part #:
SA111
Weight:
1.40 lbs
Low Inventory Get It Today
2-way normally closed solenoid valve with a brass construction. Used for water, air, inert gases and light oil in car washes. Compatible with 24VAC electrical connections.
Technical Specifications
Voltage AC: 24
Min PSI: 0
Max PSI: 100
Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Watts: 10.1
Max Temperature: 180 degrees F
Product Description
24VAC Solenoid Valve
The ASCO 8262H208 is designed to handle applications involving air, inert gases, light oil, and water. Valve features a 2-way normally closed configuration. Constructed to handle a maximum pressure of 100 PSI for all mediums, with a minimum operating pressure differential of 0 PSI. Made with brass and NBR seals.Specifications:
- Valve Configuration: 2-Way, Normally Closed
- Media: Air, Inert Gases, Light Oil, Water
- Ports: 1/4" FNPT
- Min. Operating Pressure Differential: 0 PSI
- Max. Operating Pressure Differential: 100 PSI
- Environmental Rating: Indoor, Outdoor
- Voltage: 24VAC
- Flow Factor: 0.73 Cv
- Body Material: Brass
- Coil Insulation Class: F
- Seal Material: NBR
- Orifice Dia.: 7/32 in
- NEMA Rating: 1, 2, 3, 3S, 4, 4X
- IP Rating: 66
- Fluid Temp. Range: -13°F - 180°F
- Watts: 10.1 W
- Coil Enclosure: NEMA
- Approvals: CE, CSA, FM, UL
