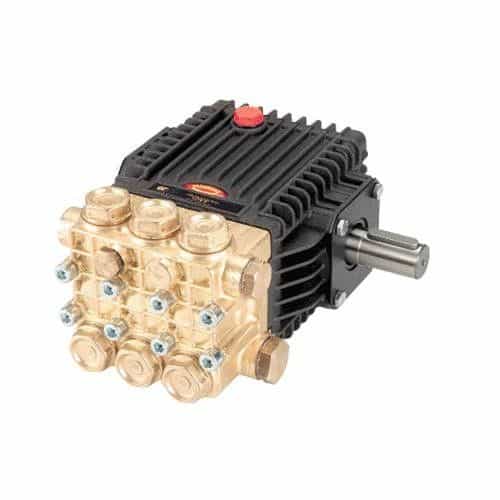

General Pump TX1812S17 Series 63 Triplex Plunger Pump - 3.8 GPM, 2500 PSI, 1750 RPM, Right Shaft
Brand:
Mfr. Model #:
TX1812S17
KR Part #:
GPTX1812S17
Weight:
19.60 lbs
IN STOCK ALTERNATIVE
General Pump EP1812S17 EP Series Solid Shaft Plunger Pump, 4 GPM, 2500 PSI, 1750 RPM, Right Shaft
SKU: GPEP1812S17
Click to View
Features oversized bearing and a new generation seal system for longer life in carwash and pressure wash usage. Forged brass manifold with exclusive lifetime warranty. 3.8 GPM flow, at pressures up to 2500 PSI.
Technical Specifications
Bore: 18 millimeter
Crankcase Capacity: 14 ounce
Horsepower: 5.2
Inlet Port: 1/2 inch
Shaft Diameter: 24 millimeter
Stroke: 12 millimeter
RPM: 1750
Max PSI: 2500
Max Temperature: 165 degrees F
Max GPM: 3.8
Product Description
63 Series General Pump
This TX series pump is a triplex plunger pump featuring a solid ceramic plunger with a dual guide system. Its new optimized outlet valves help provide durability and reliability for long lasting performance! Features solid, oversized bearings on both sides and a new generation seal system for longer life.
Dimensions: 8.4" x 8.3" x 4.8"
- Energized special pressure packings.
- Solid ceramic plungers.
- Ball bearings on both sides.
- Patented "high tech" low and high-pressure seals.
Specifications:
- Max Volume: 3.8 GPM
- Max Discharge Pressure: 2500 PSI
- Max Pump Speed: 1750 RPM
- Inlet Port: 1/2"-14 BSP-F
- Outlet Port: 3/8"-19 BSP-F
- See more under the Specifications tab
Product Reviews
Frequently Asked Questions
Question:Is this a suitable replacement for a Comet LWS 3525? I plan to use it in a carpet cleaning machine. If not, is there another model that can be used instead of the Comet LWS 3525? Thanks
-
Silviu
(09/18/2021)
Response:Please contact our sales department for a possible replacement pump at 800-233-3873.
