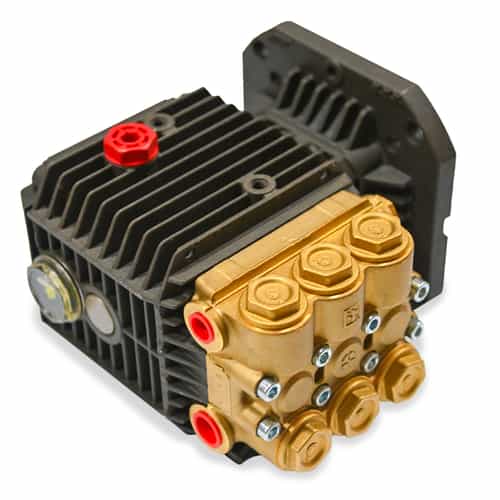

Direct Drive Plunger Pump with Flange for Electric Motor

The General Pump TT9071EBF Pump is a triplex plunger pump with a maximum flow rate of 2.8 GPM and a maximum pressure of 1500 PSI. Includes a flange that mounts NEMA 56C electric motors with a maximum speed of 3400 RPM. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. The TT9071EBF is great for pressure washing, high-pressure spraying, misting, and water circulation applications!

Specifications:

• Manufacturer: General Pump
• Model Number: TT9071EBF
• GTIN: 682491027157
• Maximum Pressure: 1500 PSI
• Maximum Inlet Pressure: 125 PSI
• Maximum Flow Rate: 2.8 GPM
• Maximum RPM: 3400
• Shaft Diameter - Hollow Shaft: 5/8" (16mm)
• Crankcase Capacity: 11.2-ounce
• Inlet Port: 3/8"
• Discharge Port: 1/4"
• Stroke: 6.6mm
• Bore: 15mm
• Maximum Temperature: 165° degrees Fahrenheit
• Shaft: Right
• Water Inlet: 3'
• Dimensions: 7.2" x 7.2" x 5.5"
• Weight: 13.2 lbs.

Features:

• Forged brass manifold
• Die-cast anodized aluminum, oil-bath crankcase
• Solid ceramic plungers with continuously lubricated packings
• The original Interpump unitized, stainless steel, K01 inlet, and outlet valves
• Ideal for all general cleaning applications
• It comes standard with NEMA 56C electric motor mounting flange
