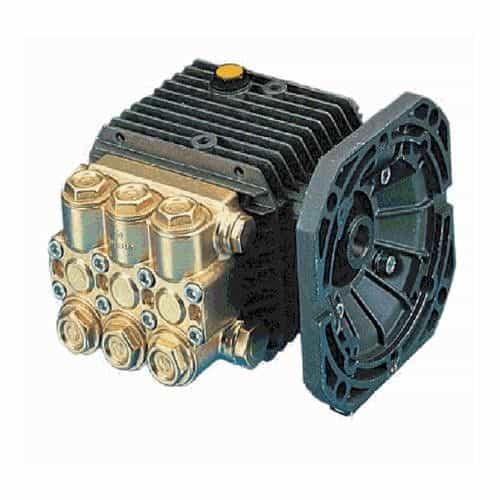

General Pump TT9061EBF Plunger Pump with Electric Motor Flange - 2.11GPM, 1500PSI, 3400RPM
Brand:
Mfr. Model #:
TT9061EBF
KR Part #:
GPTT9061EBF
Weight:
13.40 lbs
GTIN:
682491027140
Plunger pump with brass manifold, aluminum crankcase, 3 solid ceramic plungers, and an electric motor flange. Ideal pump choice for high-pressure general cleaning applications. 1500 PSI, 2.11 GPM, 3400 RPM.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11.2 oz.
Inlet Port: 3/8 inch
Max GPM: 2.11
Max PSI: 1500
Max Temperature: 165 degrees F
RPM: 3400
Shaft Diameter: 16 millimeter
Stroke: 5 millimeter
Product Description
Electric Motor Direct Drive Pump with Flange
The General Pump TT9061EBF Pump is a triplex plunger pump with a maximum flow rate of 2.11 GPM and a maximum pressure of 1500 PSI. Includes a flange that mounts NEMA 56C electric motors with a maximum speed of 3400 RPM. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and water circulation applications!
Dimensions: 7.2" x 7.2" x 5.5"
Specifications:
- 1500 PSI maximum pressure
- 125 PSI maximum inlet pressure
- 2.11 GPM maximum flow rate
- 3400 maximum RPM
- 5/8" (16mm) shaft diameter - hollow shaft
- 11.2 ounce crankcase capacity
- 3/8" inlet port
- 1/4" discharge port
- 6.6mm stroke
- 15mm bore
- 165° Fahrenheit maximum temperature
- Right shaft
- 3' water inlet
- Weight: 13.4 lbs.
Features:
- Forged brass manifold
- Die-cast annodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
- Comes standard with NEMA 56C electric motor mounting flange
