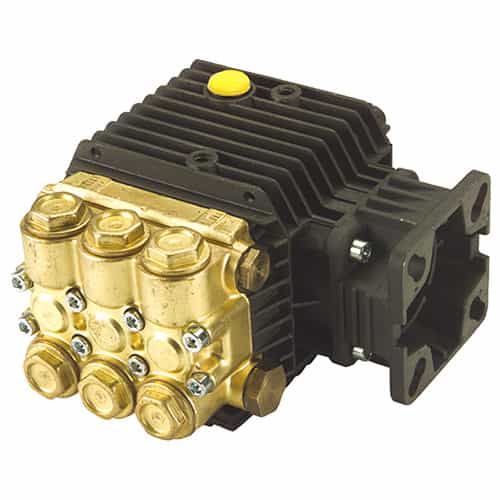

General Pump TT2035GBF Series 51 Triplex Pump - 3.5GPM, 2000 PSI, Right Shaft
Brand:
Mfr. Model #:
TT2035GBF
KR Part #:
GPTT2035GBF
Weight:
12.80 lbs
GTIN:
682491027133
Triplex plunger pump with brass manifold, aluminum crankcase, and three solid ceramic plungers. SAE J609 gasoline engine mounting flange comes standard. Pressure up to 2000 PSI, flow up to 2.1 GPM, 3400 RPM.
Technical Specifications
Bore: 15 millimeter
Stroke: 8 millimeter
Shaft Diameter: 3/4 inch
RPM: 3400
Max Temperature: 165 degrees F
Max PSI: 2000
Max GPM: 3.5
Inlet Port: 3/8 inch
Crankcase Capacity: 11.2 ounce
Product Description
51 Series Pump with Gasoline Engine Flange
The General Pump TT2035GBF Pump is a triplex plunger pump that includes an SAE J609 flange for gasoline engines, with a maximum speed of 3400 RPM. Has a maximum flow rate of 3.5 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!
Dimensions: 7.2" x 7.2" x 5.5"
Features include:
- Forged brass manifold with exclusive lifetime warranty
- Die cast, anodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
- Right shaft
- SAE J609 flange for gasoline engines
Specifications:
- Maximum Volume: 3.5 GPM
- Maximum Discharge Pressure: 2000 PSI
- Maximum Pump Speed: 3400 RPM
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
- Bore: .591 in. / 15 mm
- Stroke: .315 in./8 mm
- Crankcase Oil Capacity: 11.2 oz.
- Maximum Fluid Temperature: 165 F
- Inlet Port Thread: 3/8-19 BSPP-F
- Discharge Port Thread: 1/4-19 BSPP-F
- Hollow Shaft I.D.: 5/8 in. / 16 mm
- Weight: 11.4 lbs.
