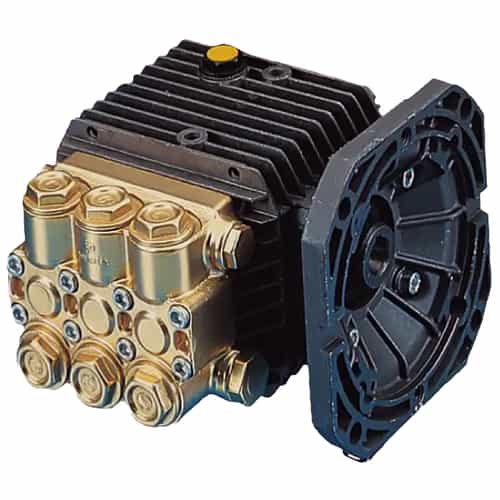

General Pump TT2035EBF Series 51 Triplex Pump, 3.5 GPM, 2000 PSI, Right Shaft
Brand:
Mfr. Model #:
TT2035EBF
KR Part #:
GPTT2035EBF
Weight:
13.00 lbs
GTIN:
682491027126
Availability:
2
Triplex plunger pump with brass manifold, aluminum crankcase, and three solid ceramic plungers. Flanged for mounting to NEMA 56C electric motor. Pressure up to 2000 PSI, flow up to 2.1 GPM, 3400 RPM.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11.2 ounce
Inlet Port: 3/8 inch
Max GPM: 3.5
Max PSI: 1800
Max Temperature: 165 degrees F
RPM: 3400
Shaft Diameter: 16 millimeter
Stroke: 8 millimeter
Product Description
51 Series Pump with Electric Engine Flange
The General Pump TT2035EBF Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 3.5 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!
Dimensions: 7.0" x 7.2" x 5.5"
Features include:
- Forged brass manifold
- Die cast, anodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
Specifications:
- Maximum Volume: 3.5 GPM
- Maximum Discharge Pressure: 2000 PSI
- Maximum Pump Speed: 3400 RPM
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
- Bore: .591 in. / 15 mm
- Stroke: .315 / 8
- Crankcase Oil Capacity: 11.2 oz.
- Maximum Fluid Temperature: 165 F
- Inlet Port Thread: 3/8-19 BSPP-F
- Discharge Port Thread: 1/4-19 BSPP-F
- Shaft: 3/4 in./19 mm, Hollow, Right Side
- Weight: 11.5 lbs.
- Dimensions: 7.0" x 7.2" x 5.5"
