General Pump TT2028GBFUIL Plunger Pump with Gas Engine Flange, Unloader and Injector, 2.8 GPM, 2000 PSI, Left Shaft
Brand:
Mfr. Model #:
TT2028GBFUIL
KR Part #:
GPTT2028GBFUIL
Weight:
15.20 lbs
GTIN:
682491027119
Availability:
1

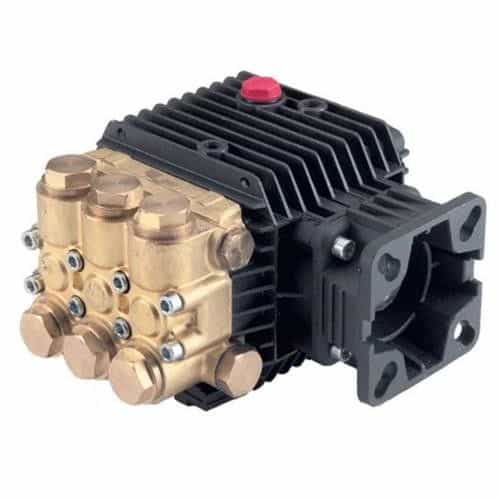

Compact design plunger pump for high-pressure cleaning applications. Arrives flanged for direct coupling to a SAE J609B gasoline engine. Includes a built-in unloader for pressure regulation. Note: picture shows right shaft, but this is a left hand pump.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11.2 ounce
Inlet Port: 3/8 inch
Max PSI: 2000
Stroke: 6.6 millimeter
Shaft Diameter: 3/4 inch
RPM: 3400
Crankcase Capacity: 165 degrees F
Max GPM: 2.8
Product Description
Gas Engine Flanged Plunger Pump
The General Pump TT2028GBFUIL Pump is part of the TT Series 51 line of plunger pumps. This general cleaning pump comes with a flange for gasoline engines (SAE J609) and a built-in unloader. Use in applications requiring a pump with a 2.8 GPM maximum flow rate and maximum pressure of 2000 PSI. Features left-hand shaft for adaptation into unique spaces.
Specifications:
- Maximum Volume: 2.8 GPM
- Maximum Pressure: 2000 PSI
- Maximum RPM: 3400 RPM
- Inlet Port: 1/2" NPT-M
- Discharge Port: 3/8" NPT-M
- 11.2 ounce crankcase capacity
- Bore: 15mm
- Stroke: 6.6mm
- 125 PSI maximum inlet pressure
- 3/4" hollow shaft
- Flooded maximum inlet vacuum
Features:
- Flanged for direct coupling to SAE J609 gas engines
- Built-in TP unloader
- Fixed downstream injector
- Fully anodized crankcase
- Oversized bearings
- Sight glass for easier monitoring
- Larger machined crankshaft - increases load potential and reduces fatigue
- Strongest manifold on the market
- Improved low and high pressure seals
- Reinforced valve cap area
- Positive aligning valve cap
- Support ridges and support ribs for piston guides
- Use GP Series 100 oil for best performance
