General Pump TT2021EBF Series 51, Pump 2.1 GPM, 2000 PSI
Brand:
Mfr. Model #:
TT2021EBF
KR Part #:
GPTT2021EBF
Weight:
12.00 lbs
GTIN:
682491119197
Availability:
1

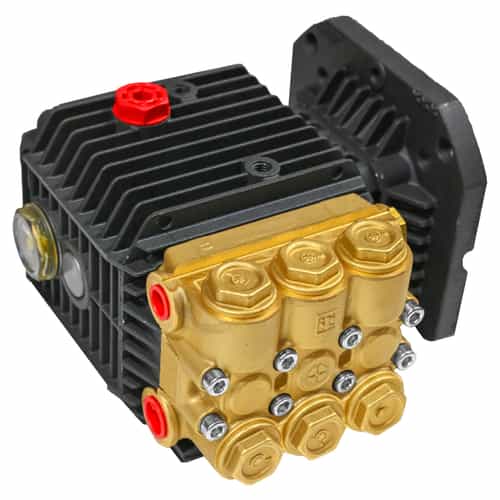

Flanged plunger pump with brass manifold, aluminum crankcase, and three solid ceramic plungers. Flanged for mounting to NEMA 56C electric motor. Pressure up to 2000 PSI, 2.1 GPM, 3400 RPM. UPC: 682491119197
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 11.2 oz.
Inlet Port: 3/8 inch
Max GPM: 2.1
Max PSI: 2000
Max Temperature: 165 degrees F
RPM: 3400
Shaft Diameter: 16 millimeter
Stroke: 5 millimeter
Product Description
51 Series Pump with Electric Engine Flange
The General Pump TT2021EBF Pump is a triplex plunger pump that includes a flange for electric NEMA 56C motors with a maximum speed of 3400 RPM. Has a maximum flow rate of 2.1 GPM and a maximum pressure of 2000 PSI. Features a die-cast aluminum crankcase, a forged brass manifold, and solid ceramic plungers. A great choice for high-pressure spraying, misting, and cleaning applications!
Dimensions: 7.0" x 7.2" x 5.5"
Features:
- Forged brass manifold
- Die-cast anodized aluminum, oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- The original Interpump unitized, stainless steel, K01 inlet and outlet valves
- Ideal for all general cleaning applications
- Comes standard with NEMA 56C electric motor mounting flange
- Includes a pressure unloader and chemical injector
Specifications:
- Maximum Flow: 2.1 GPM
- Maximum Pressure: 2000 PSI
- Maximum RPM: 3400 RPM
- Shaft: 5/8" hollow
- 11.2 ounce crankcase capacity
- Inlet Port: 3/8"-19 BSPP-F
- Outlet Port: 1/4"-19 BSPP-F
- Bore: 15 mm
- Stroke: 5 mm
- 165° Fahrenheit maximum temperature
- Right shaft
- Weight: 11.5 lbs.
