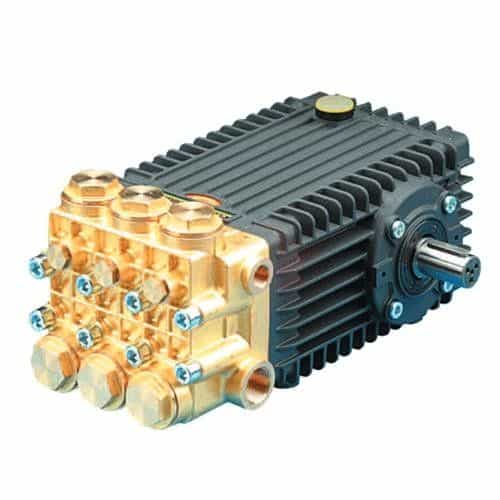

General Pump TSF2219 High Flow Triplex Pump, 9.3 GPM, 3000 PSI, Right Shaft
Brand:
Mfr. Model #:
TSF2219
KR Part #:
GPTSF2219
Weight:
40.70 lbs
GTIN:
682491120094
The preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings. Up to 9.3 GPM at up to 3000 PSI.
Technical Specifications
Bore: 22 millimeter
Crankcase Capacity: 40.6 ounce
Horsepower: 19.1
Inlet Port: 3/4 inch
Max GPM: 9.3
Max PSI: 3000
Max Temperature: 165 degrees F
RPM: 1750
Shaft Diameter: 24 millimeter
Stroke: 19 millimeter
Product Description
General Pump TSF 66 Series Pump with Right Shaft
The General Pump TSF2219 features one of the leading pump frames in the pressure cleaning industry. A large-capacity fully anodized crankcase and new plunger design with improved thermal shock resistance provide for durability and reliability. Produces consistent high flow at mid-range pressures.
Dimensions: 14.94" x 9.78" x 6.99"
Features
- New valve cap for improved hydrostatic performance
- Oversized roller bearings
- Innovative new seal design for extended seal life
- Right side crankshaft
Specifications
- Maximum Flow: 9.3 GPM
- Maximum Pressure: 3000 PSI
- RPM: 1750 RPM
- Max Temperature: 165° F
- Inlet Port: 3/4"-14 BSP-F
- Discharge Port: 3/8"-19 BSP-F
