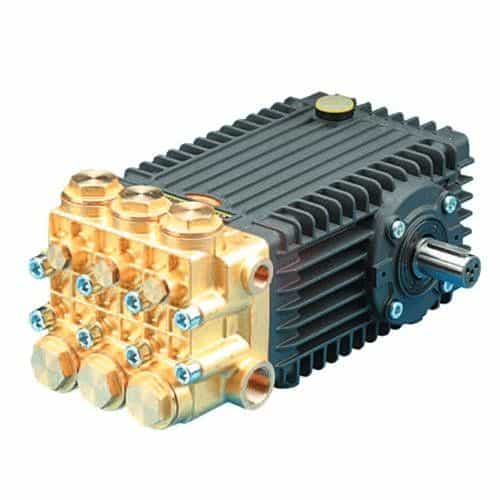

General Pump TSF2021 High Flow Triplex Pump, 8.5 GPM, 4000 PSI, Right Shaft
Brand:
Mfr. Model #:
TSF2021
KR Part #:
GPTSF2021
Weight:
44.00 lbs
GTIN:
682491026518
The General Pump TSF2021 is a durable, high-performance option in the pressure washing industry. TSF2021 specs that jump out include 7 GPM, 1450 RPM, 3600 PSI, and 17.3 EBHP. This is the right shaft version. Also available in left shaft.
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 40.6 ounce
Inlet Port: 3/4 inch
Max PSI: 3600
Shaft Diameter: 24 millimeter
Stroke: 21 millimeter
Max GPM: 7
Horsepower: 17.3
RPM: 1450
Max Temperature: 165 F
Product Description
TSF2021 Pump
The TSF2021 General Pump features one of the leading pump frames in the pressure cleaning industry. A large-capacity, fully anodized crankcase and new plunger design with improved thermal shock resistance provide for durability and reliability. The TSF2021 produces consistent high flow at mid-range pressures. There's also the benefit of a new seal design which extends the life of the seal. Another worthwhile inclusion is a new valve cap, which improves the hydrostatic performance of the pump.
All in all, the TSF2021 specs look mighty impressive once you start digging into them. Max GPM is 7. The max PSI reaches 3600, while the max RPM is a speedy 1450. The 17.3 BHP is a big part of what allows the pump to perform so consistently.
Dimensions: 14.94" x 9.78" x 6.99"
TSF2021 Features:
- New valve cap for improved hydrostatic performance
- Oversized roller bearings
- Innovative new seal design for extended seal life
- Right side crankshaft
TSF2021 Pump Specs:
- Maximum Flow: 8.5 GPM
- Maximum Pressure: 3600 PSI
- RPM: 1750 RPM
- Max Temperature: 165° F
- Inlet Port: 3/4"-14 BSP-F
- Discharge Port: 3/8"-19 BSP-F
