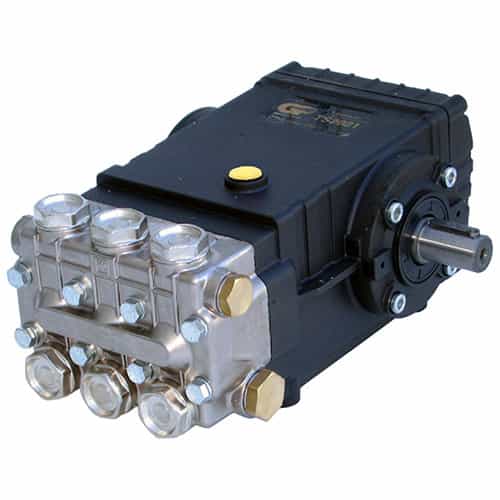

General Pump TS1621 Pressure Cleaning Triplex Plunger Pump - 4.75 GPM, 2500 PSI, 1450 RPM
Brand:
Mfr. Model #:
TS1621
KR Part #:
GPTS1621
Weight:
32.00 lbs
GTIN:
682491120070
This pump features a nickel plated forged brass manifold. Components are made to maximize longevity. Delivers a maximum flow rate of 4.75 GPM.
Technical Specifications
Bore: 22 millimeter
Crankcase Capacity: 40.6 oz.
Inlet Port: 1/2 inch
Max GPM: 4.75
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 1450
Shaft Diameter: 24 millimeter
Stroke: 12 millimeter
Product Description
4.75 GPM - T Series 47 S Pump
The General Pump TS1621 is a pump engineered for pressure washing applications and features the preferred frame of the industry. The forged brass manifold is coated with nickel-plating for superior corrosion resistance to increase its longevity. Over-sized connecting rods, solid ceramic plungers, and heavy-duty tapered roller bearings are used because of their increased longevity. Packings are lubricated by the fluid being pumped extending the life of these components by preventing unnecessary wear.Specifications:
- Maximum Volume: 4.75 GPM
- Maximum Discharge Pressure: 2500 PSI
- Maximum Pump Speed: 1450 RPM
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
- Bore: .866 in. / 22 mm
- Stroke: .472 in. / 12 mm
- Crankcase Oil Capacity: 37.2 oz.
- Maximum Fluid Temperature: 165 Degrees F
- Inlet Port Thread: 1/2-14 BSPP-F
- Discharge Port Thread: 3/9-19 BSPP-F
- Shaft Diameter: .945 in. / 24 mm
- Dimensions: 12.6” x 9.2” x 6.9”
