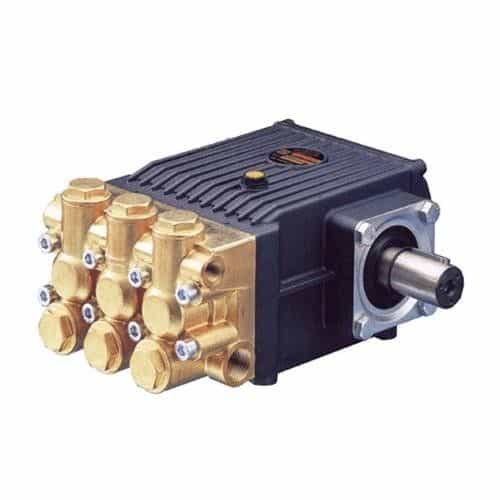

General Pump TS1531 Triplex Plunger Pump, 7.92 GPM, 2175 PSI, Right Shaft
Brand:
Mfr. Model #:
TS1531
KR Part #:
GPTS1531
Weight:
46.00 lbs
GTIN:
682491026495
The preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings. Up to 7.92 GPM at 2175 PSI.
Technical Specifications
Bore: 20 millimeter
Crankcase Capacity: 50.7 oz.
Inlet Port: 3/4 inch
Max GPM: 7.92
Max PSI: 2175
Max Temperature: 165 degrees F
RPM: 1450
Shaft Diameter: 35 millimeter
Stroke: 22 millimeter
Product Description
General Pump T Series 69 Pump
The General Pump TS1531 features the preferred pump frame in the pressure cleaning industry. A forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings all come together for supreme durability and reliability. Produces consistent mid-range flow at mid-range pressures.
Dimensions: 12.9" x 11.9" x 7.3"
Features
- Oversized connecting rods for maximum life
- Heavy duty tapered roller bearing
- Unitized stainless steel inlet and discharge valves
- Right side crankshaft
Specifications
- Maximum Flow: 7.92 GPM
- Maximum Discharge Pressure: 2175 PSI
- Maximum Inlet Pressure: 125 PSI
- RPM: 1450 RPM
- Max Temperature: 165° F
- Inlet Port: 3/4"-14 BSP-F
- Discharge Port: 3/8"-19 BSP-F
