General Pump TS1331L Triplex Plunger Pump, 3.5 GPM, 2100 PSI, Left Shaft
Brand:
Mfr. Model #:
TS1331L
KR Part #:
GPTS1331L
Weight:
32.00 lbs
Call For Availability

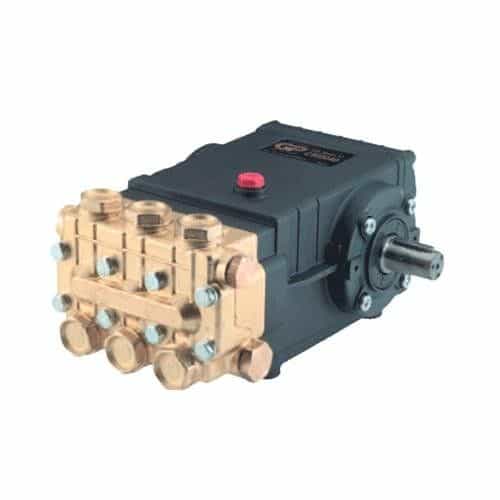

The preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings. Up to 3.5 GPM at 2100 PSI. Note: picture shows right shaft, but this is a left hand pump.
Technical Specifications
Crankcase Capacity: 33.8 oz.
Max GPM: 3.5
Max PSI: 2100
Max Temperature: 165 degrees F
RPM: 1450
Bore: 20 millimeter
Stroke: 10 millimeter
Shaft Diameter: 24 millimeter
Inlet Port: 1/2 inch
Product Description
General Pump T Series 47S Pump with Left Shaft
The General Pump TS1331L features the preferred pump frame in the pressure cleaning industry. A forged brass manifold, large-capacity aluminum oil bath crankcase, and solid ceramic plungers with continuously lubricated packings all come together for supreme durability and reliability. Produces consistent mid-range flow at mid-range pressures.
Dimensions: 12.2" x 9.2" x 6.9"
Features
- Oversized connecting rods for maximum life
- Heavy duty tapered roller bearing
- Unitized stainless steel inlet and discharge valves
- Left side crankshaft
Specifications
- Maximum Flow: 3.5 GPM
- Maximum Pressure: 2100 PSI
- RPM: 1450 RPM
- Max Temperature: 165° F
- Inlet Port: 1/2-14 BSP-F
- Discharge Port: 3/8-19 BSP-F
