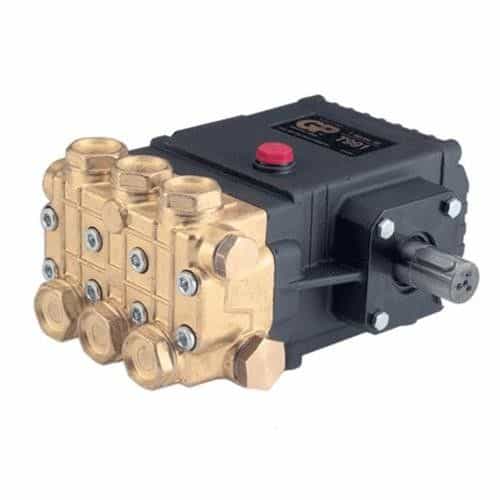

General Pump TS1321 Pressure Wash Plunger Pump T Series 47 - 4.75 GPM, 2100 PSI, 1450 RPM
Brand:
Mfr. Model #:
TS1321
KR Part #:
GPTS1321R
Weight:
33.60 lbs
GTIN:
682491026471
Availability:
1
Pump frame is preferred in the pressure cleaning industry. Crankcase oil capacity reaches 37.2 ounces. Continuously lubricated packings.
Technical Specifications
Bore: 22 millimeter
Inlet Port: 1/2 inch
Max GPM: 4.75
Max PSI: 2100
Max Temperature: 165 degrees F
RPM: 1450
Shaft Diameter: 24 millimeter
Stroke: 12 millimeter
Crankcase Capacity: 37.2 ounce
Product Description
Pressure Cleaning Pump
Part of the 47 Series, this is the preferred pump frame in the pressure cleaning industry. Forged brass manifold with solid ceramic plungers and continuously lubricated packings keep the pump functioning efficiently. High-capacity oil-bath crankcase is made with die-cast, anodized aluminum and has a capacity of 37.2 ounces of oil.
Specifications:
- GPM: 4.75
- PSI: 2100
- RPM: 1450
- Bore: .866 in./22 mm
- Stroke: .472 in./12 mm
- HP: 6.8 EBHP
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
- Bore: .866 in. / 22 mm
- Stroke: .472 in. / 12 mm
- Crankcase Oil Capacity: 37.2 oz.
- Maximum Fluid Temperature: 165°F
- Inlet Port Thread: 1/2-14 BSPP-F
- Discharge Port Thread: 3/9-19 BSPP-F
- Shaft Diameter .945 in. / 24 mm
- Weight: 32 lbs.
- Dimensions: 12.6" x 9.2" x 6.9"
Features:
- The preferred pressure cleaning industry pump frame
- Forged brass manifold
- High-capacity, die-cast, anodized aluminum oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
- Over-sized connecting rods
- Heavy-duty tapered roller bearing
