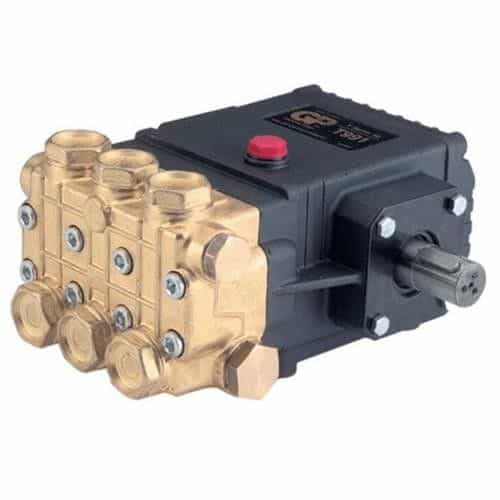

General Pump TS1321L Left Side Plunger Pump T Series 47 - 4.75 GPM, 2100 PSI, 1450 RPM
Brand:
Mfr. Model #:
TS1321L
KR Part #:
GPTS1321L
Weight:
32.00 lbs
Pump frame is preferred in the pressure cleaning industry. Crankcase oil capacity reaches 37.2 ounces. Continuously lubricated packings. Note: This has a left-handed shaft.
Technical Specifications
Bore: 22 millimeter
Inlet Port: 1/2 inch
Max GPM: 4.75
Max PSI: 2100
RPM: 1450
Shaft Diameter: 24 millimeter
Max Temperature: 165 degrees F
Stroke: 12 millimeter
Crankcase Capacity: 37.2 ounce
Product Description
4.75 GPM Pressure Cleaning Pump
Part of the Series 47 this is the preferred pump frame in the pressure cleaning industry. Forged brass manifold with solid ceramic plungers and continuously lubricated packings keep the pump functioning efficiently. High-capacity oil-bath crankcase is made with die-cast, anodized aluminum and has a capacity of 37.2 ounces of oil.
Specifications:
- GPM: 4.75
- PSI: 2100
- RPM: 1450
- Bore: .866 in./22 mm
- Stroke: .472 in./12 mm
- HP: 6.8 EBHP
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
- Bore: .866 in. / 22 mm
- Stroke: .472 in. / 12 mm
- Crankcase Oil Capacity: 37.2 oz.
- Maximum Fluid Temperature: 165°F
- Inlet Port Thread: 1/2-14 BSPP-F
- Discharge Port Thread: 3/9-19 BSPP-F
- Shaft Diameter .945 in. / 24 mm
- Weight: 32 lbs.
- Dimensions: 12.6" x 9.2" x 6.9"
Features:
- The preferred pressure cleaning industry pump frame
- Forged brass manifold
- High-capacity, die-cast, anodized aluminum oil-bath crankcase
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
- Over-sized connecting rods
- Heavy-duty tapered roller bearing
