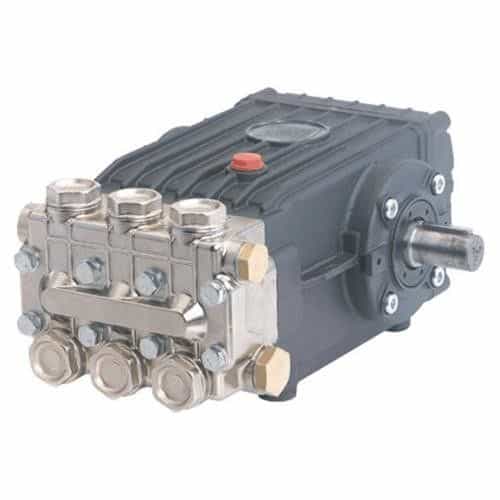

General Pump T9281 Plunger Pump

General Pump T9281 features a nickel-plated manifold that tolerates higher pressures than typical pumps. Plus, this manifold material has superior corrosion resistance which lends to its reputation in pressure cleaning industries. General Pump T Series 47 S line pumps offer excellent performance for car washes, pressure washers, and many other high-pressure cleaning applications. Solid ceramic plungers feature continuously lubricated packings to decrease the time you spend maintaining your pump. The T9281 produces a maximum pressure of 4000 PSI for applications that require high pressure to remove dirt and grime. Plus, it delivers a maximum flow rate of 4.0 GPM.

Specifications:

• Manufacturer: General Pump
• Model: T9281
• Series: T Series 47 S
• Style: Triplex Plunger Pump
• GTIN: 682491120087
• Maximum Flow Rate: 4.0 GPM
• Maximum Discharge Pressure: 4000 PSI
• Maximum Pump Speed: 1750 RPM
• Maximum Inlet Pressure: 125 PSI
• Maximum Inlet Vacuum: 9 ft. water (7.9 in. Hg)
• Plunger Bore: .630 in. / 16 mm
• Plunger Stroke: .630 in. / 16 mm
• Crankcase Oil Capacity: 37.2 oz.
• Maximum Fluid Temperature: 165 degrees F
• Inlet Port Thread: 1/2-14 BSPP-F
• Discharge Port Thread: 3/8-19 BSPP-F
• Shaft Diameter: .945 in. / 24 mm
• Dimensions: 12.6” x 9.2” x 6.9”
• Weight: 33.60 lbs.

Features:

• The preferred pump frame in the pressure cleaning industry
• Nickel-plated forged brass manifold endures high working pressures and provides increased corrosion resistance
• Large-capacity, die-cast, anodized aluminum oil-bath crankcase
• Over-sized connecting rods maximize lifespan
• Heavy-duty tapered roller bearings withstand heavy use
• Solid ceramic plungers with continuously lubricated packings
• Unitized stainless steel inlet and discharge valves for corrosion resistance
