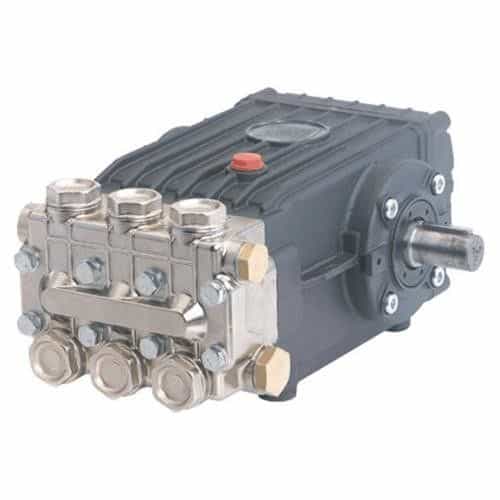

General Pump T9281 T-47 Series Triplex Plunger Pump, 4.0 GPM, 2500 PSI, 1050 RPM, Right Shaft
Brand:
Mfr. Model #:
T9281
KR Part #:
GPT9281
Weight:
33.60 lbs
GTIN:
682491120087
Availability:
2
The General Pump T-47 Series is the preferred pump frame in the pressure cleaning industry. Features a forged brass manifold, nickel-plated with an exclusive lifetime warranty, heavy-duty tapered roller bearings, and unitized SS inlet and discharge valves. Flow up to 4.0 GPM, at up to 4000 PSI.
Technical Specifications
Bore: 16 millimeter
Crankcase Capacity: 40.6 ounces
Inlet Port: 1/2 inch
Max PSI: 2500
Max GPM: 4
Stroke: 16 millimeter
Shaft Diameter: 24 millimeter
RPM: 1050
Max Temperature: 165 degrees F
Product Description
General Pump T9281 Pump
Triplex plunger pump featuring advanced forged brass manifold with nickel plating for increased working pressure. Solid ceramic plungers with continuously lubricated packings and over-sized connecting rods, for maximum life span. 16 mm solid shaft.
Dimensions: 12.6" X 9.2" X 6.9"
- Triplex Plunger Pump.
- Advanced nickel-plated forged brass manifold
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Solid ceramic plunger
- Unitized stainless steel inlet and discharge valves
Specifications:
- Max Volume: 4.0 GPM
- Max Discharge Pressure: 4000 PSI
- Max Pump Speed: 1750 RPM
- Max Temperature: 165°F
- Inlet Port: 1/2"-14 BSP-F
- Outlet Port: 3/8"-19 BSP-F
