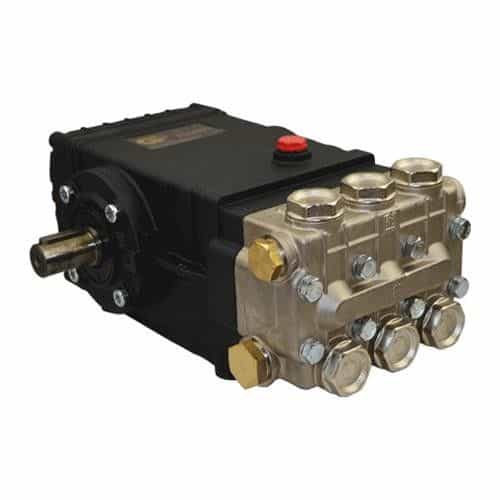

General Pump T921L Left Shaft T-Series 47 S Pump - 5 GPM, 1700 PSI, 1050 RPM
Brand:
Mfr. Model #:
T921L
KR Part #:
GPT921L
Weight:
33.00 lbs
GTIN:
682491026297
IN STOCK ALTERNATIVE
General Pump T1321L T-47 Series Left Shaft Plunger Pump - 2100 PSI, 5.5 GPM, 1150 RPM
SKU: GPT1321L
Click to View
High-pressure plunger pump with forged brass manifold and unitized stainless steel inlet/discharge valves. From General Pump T-Series 47S Series. 5 GPM, 1700 PSI, 1050 RPM. Left shaft model of the T921 pump.
Technical Specifications
Bore: 22 millimeter
Crankcase Capacity: 40.6 ounce
Shaft Diameter: 24 millimeter
Max Temperature: 165 degrees F
Inlet Port: 1/2 inch
Max PSI: 3000
RPM: 1750
Max GPM: 4.2
Stroke: 10 millimeter
Product Description
Left Side T921L Pump
The General Pump T921L Pump is a heavy-duty plunger pump with a forged brass manifold, oversized connecting rods, strong taper roller bearing, and solid ceramic plungers. Features unitized stainless steel inlet and discharge valves. This is a highly preferred pump frame in the pressure cleaning industry!This is a left side version of the T921 pump.
Specifications:
- Maximum Volume: 5.0 GPM
- Maximum Discharge Pressure: 1700 PSI
- Maximum Pump Speed: 1050 RPM
- Maximum Inlet Pressure: 125 PSI
- Plunger Bore: 22mm (.866")
- Plunger Stroke: 16mm (.630")
- Crankcase Oil Capacity: 33.8 oz.
- Maximum Fluid Temperature: 165° F
- Inlet Port Thread: 1/2-14 BSPP-F
- Discharge Port Thread: 3/8-19 BSPP-F
- Shaft Diameter: 24mm (.945")
- Left shaft
- Weight: 32 lbs.
- Dimensions: 12.2" x 9.2" x 6.9"
- The preferred pump frame in the pressure cleaning industry
- Forged brass manifold
- Large-capacity, die-cast, anodized aluminum oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
