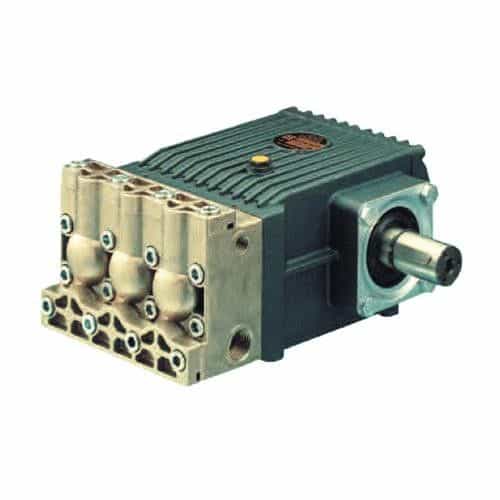

General Pump T41L High Flow Triplex Plunger Pump - 12 GPM, 900 PSI, 650 RPM, Left Shaft
Brand:
Mfr. Model #:
T41L
KR Part #:
GPT41L
Weight:
37.00 lbs
A left shaft triplex plunger pump the produces a flow rate of 12 GPM. Components are designed to increase the pumps lifespan. Handles a maximum pressure of 900 PSI and shaft speed of 650 RPM.
Technical Specifications
Bore: 36 millimeter
Crankcase Capacity: 50.7 ounce
Inlet Port: 3/4 inch
Max GPM: 12
Stroke: 24 millimeter
Shaft Diameter: 35 millimeter
RPM: 650
Max Temperature: 165 degrees F
Max PSI: 900
Product Description
12 GPM - Left Shaft T Series 69 Pump
The General Pump T41L is a left shaft triplex plunger pump from the T Series 69 line of pumps and is engineered to produce a high flow rate. It produces a maximum flow rate of 12 GPM for applications requiring a large supply of fluid. Built with oversized connecting rods, heavy duty tapered bearings, and a die-cast anodized aluminum, oil-bath crankcase for durability and maximized longevity. Packings are lubricated by the solid ceramic plungers.Specifications:
- Maximum Volume: 12.0 GPM
- Maximum Discharge Pressure: 900 PSI
- Maximum Pump Speed: 650 RPM
- Maximum Inlet Pressure: 125 PSI
- Maximum Inlet Vacuum: 9 ft. water (7.9 Hg)
- Plunger Bore (in / mm): 1.417 in. / 36 mm
- Plunger Stroke (in / mm): .945 in. / 24 mm
- Oil Capacity: 50.7 oz.
- Maximum Fluid Temperature: 165 Degrees F
- Inlet Port Thread: 3/4-14 BSPP-F
- Discharge Port Thread: 3/8-19 BSPP-F
- Shaft Diameter: 1.378 in. / 35 mm
- Shaft Side: Left
- Weight: 37 lbs.
- Dimensions: 12.9” x 11.9” x 7.3”
- GTIN: 682491026228
- The industry’s choice for high-flow applications
- Large-capacity, die-cast anodized aluminum, oil-bath crankcase
- Over-sized connecting rods for maximum life
- Heavy-duty tapered roller bearing
- Solid ceramic plungers with continuously lubricated packings
- Unitized stainless steel inlet and discharge valves
