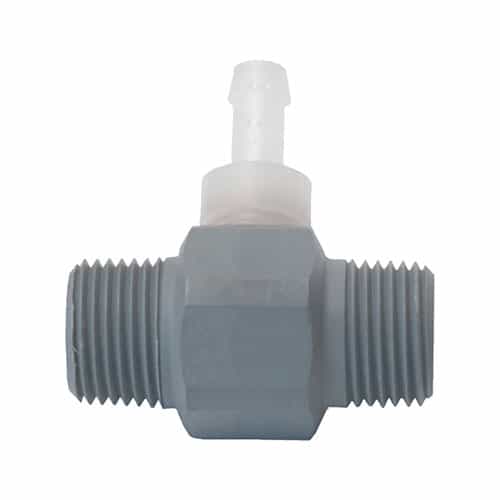

General Pumps 100938 CPVC Fixed Chemical Injector, 2-3 GPM

Brand:
Mfr. Model #:
100938
KR Part #:
GPP100938
Weight:
0.04 lbs
GTIN:
682491023524
Availability:
3
Low Stock Warning
MSRP
$80.76
Now Only!
$30.55
CPVC chemical injector with Teflon ball. Specifically designed for car wash usage - durable and cost effective. Fixed Kynar barb, EPDM O-rings. Flow rate of 2-3 GPM, maximum pressure of 250 PSI, up to 10% injection draw rate.



Technical Specifications

Max PSI: 250
Max Temperature: 190 degrees F
Orifice: 1.6
Max GPM: 3
Min GPM: 2
Inlet Port: 3/8 inch
Outlet Port: 3/8 inch

Product Description

Car Wash Chemical Injector

Simple and effective, the General Pumps 100938 chemical injector introduces the chemical of your choice into the water stream, at up to 10% injection draw rate.  Draw rate is dependent on pressure, flow rate, length of discharge hose, and chemical viscosity. CPVC body and nozzle, Teflon ball, and EPDM seals provide durability and chemical resistance. Fixed 1/4" hose barb.

Specifications

  • Orifice: 1.6 mm
  • Flow Range: 2-3 GPM
  • Maximum Pressure: 250 PSI
  • Maximum Temperature: 190° F
  • Inlet Port: 3/8" NPT-M
  • Outlet Port: 3/8" NPT-M
