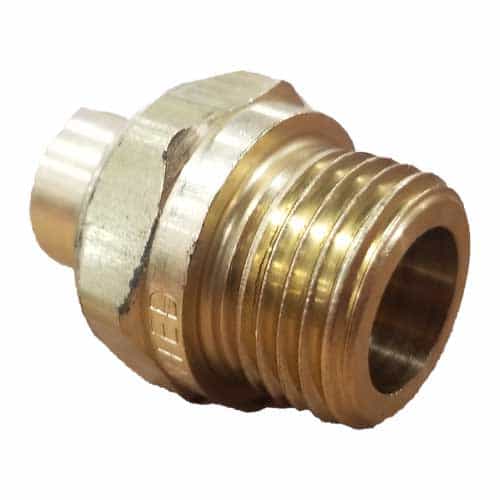

General Pump 100678 Thermal Protector - 1/2 Inch NPT, 90 PSI, 190 Degrees Fahrenheit
Brand:
Mfr. Model #:
100678
KR Part #:
GPP100678
Weight:
0.16 lbs
GTIN:
682491023418
Availability:
2
A thermal protector for pumps. The activation temperature is set at 190 degrees Fahrenheit. It is made with a 1/2 inch NPT threaded connection.
Note: Activation temperature varies with system pressure.
Note: Activation temperature varies with system pressure.
Product Description
190 Degree Pump Thermal Protector
The General Pump 100678 is a thermal protector for pumps. It features a 1/2" NPT connection. Thermal protectors prevent excessive heat build up in pumps while they are in bypass mode. This device vents a small amount of fluid when it senses a rise in temperature. Cooler water is allowed to enter the pump cooling it down.Specifications:
- Pressure Range 10 - 90 PSI
- Dimensions: 1-1/2" H x 1" W
- Materials: Brass, Buna, Delrin, Stainless Steel
- Most consistent temperature range on the market
- Quickest response to rising temperature
- Less stress on pump
- Most cost effective thermal protector in the market
- Mounts easily in the pump inlet, supply lines or bypass loop
- GTIN: 682491023418
