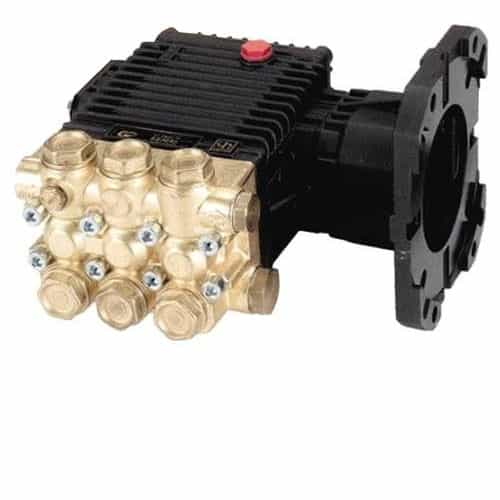

General Pump EZ4040G Flanged Gasoline Triplex Plunger Pump - 4.0 GPM, 4200 PSI, 3400 RPM

Brand:
Mfr. Model #:
EZ4040G
KR Part #:
GPEZ4040G
Weight:
21.00 lbs
GTIN:
682491016984
In Stock
MSRP
$970.00
Now Only!
$331.22
starstarstarstarstar (1)
|

A gasoline powered plunger pump with plungers engineered with a one-piece design to prevent water from entering the crankcase. Flanged to mount with 13 horsepower gasoline engines. Handles pressures up to 4200 PSI and speeds of 3400 PSI.

Note: Includes SAE J609 gasoline mounting flange for mounting up to 13 HP engines.




Technical Specifications

Bore: 13 millimeter
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max GPM: 4
Max PSI: 4000
Shaft Diameter: 25.4 millimeter
Stroke: 13 millimeter
RPM: 3400
Max Temperature: 165 degrees F

Product Description

EZ Series 44

Pressure cleaning pumps are designed with a forged brass manifold. Pump incorporates an SAE J609 gasoline mounting flange to mount up to 13 HP engines. Incorporates unitized stainless-steel inlet and discharge valves. Employs a die-cast anodized aluminum oil-bath crankcase with a capacity of 14 ounces.

Specifications:

  • Maximum Volume: 4.0 GPM
  • Maximum Discharge Pressure: 4200 PSI
  • Maximum Pump Speed: 3400 RPM
  • Maximum Inlet Pressure: 125 PSI
  • Maximum Inlet Vacuum: 3 ft. water (2.6 in. Hg)
  • Plunger Bore: .512 in. / 13 mm
  • Plunger Stroke: .512 in. / 13 mm
  • Crankcase Oil Capacity: 14.0 oz.
  • Maximum Fluid Temperature: 165° F
  • Inlet Port Thread: 1/2-14 BSPP-F
  • Discharge Port Thread: 3/8-19 BSPP-F
  • Shaft Diameter: 1.0 in. / 25.4 mm
  • Weight: 20 lbs.
  • Dimensions: 8.8" x 9.7" x 6.5"

Features:

  • Standard SAE J609 gasoline mounting flange for up to 13 hp engines
  • Forged brass manifold with an exclusive lifetime warranty and 3:1 hydrostatic rating
  • Die-cast, anodized aluminum oil-bath crankcase
  • Innovative one-piece plunger design to eliminate water entering crankcase
  • Premium roller bearing
  • 5% reduction in crankcase load compared to standard 3,000 PSI, 15 mm pumps
  • Unitized stainless steel inlet and discharge valves
  • Available in "L" left-handed versions

Product Reviews

1  Customer Review(s)
5 Star
0  (0%)
4 Star
1  (100%)
3 Star
0  (0%)
2 Star
0  (0%)
1 Star
0  (0%)

CID: -1 QueryString:general-pump-ez4040g-flanged-gasoline-triplex-plunger-pump-4-0-gpm-4200-psi-3400-rpm| Runtime:falsep-9373.aspx/p-9373.aspxen-US1https://www.kleen-ritecorp.com/9/21/2023searchEngineName=general-pump-ez4040g-flanged-gasoline-triplex-plunger-pump-4-0-gpm-4200-psi-3400-rpmcompunix.productreviews.xml.config10148904283TrueUSDTrue35.175.191.460TrueFalse8:23 AM1FalseUSDTrueen-USFalse0en-US93731FalseFalseproduct| LastCustomerReview:
Ratingstarstarstarstarstar
What weight of motor oil is to be used in the pump ? is it 90 weight or 40 weight or what? I do not know because this pump is made in Italy and there is no such oil in the united states known as GP Oil Part #100214. I need to know, this pump and motor was bought USED. NO Paper work.
Reviewed by joseph  h
4/20/2020 9:35:47 PM
