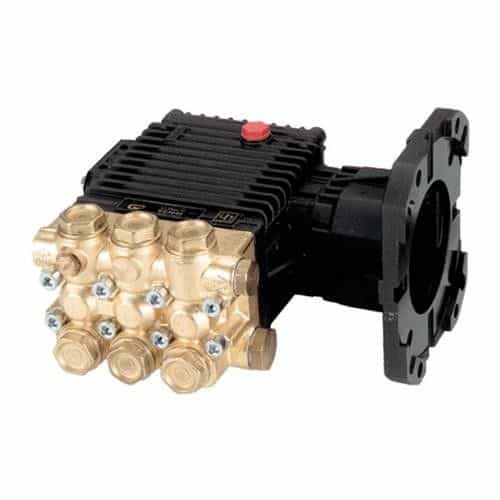

General Pump EZ3045G Gasoline Mounting Flanged Triplex Plunger Pump - 4.6 GPM, 3000 PSI, 3400 RPM
Brand:
Mfr. Model #:
EZ3045G
KR Part #:
GPEZ3045G
Weight:
20.00 lbs
GTIN:
682491113805
Created with solid ceramic plungers. Stainless-steel inlet and outlets. Oil-bath crankcase crafted with anodized aluminum. Note: Includes SAE J609 gasoline mounting flange for mounting up to 13 HP engines.
Technical Specifications
Max GPM: 4.6
Max PSI: 3000
RPM: 3400
Inlet Port: 1/2 inch
Max Temperature: 165 degrees F
Bore: 15 millimeter
Stroke: 11 millimeter
Shaft Diameter: 25.4 millimeter
Horsepower: 14.2
Crankcase Capacity: 14 ounce
Product Description
EZ Series 44 G
Pressure cleaning pumps are designed with solid ceramic plungers. Pump has an SAE J609 gasoline mounting flange installed onto the shaft for mounting up to 13 HP engines. Incorporates unitized stainless-steel inlet and discharge valves. Employs a die-cast anodized aluminum oil-bath crankcase.
Specifications:
- GPM: 4.6
- PSI: 3000
- RPM: 3400
- Bore: .591 in./15 mm
- Stroke: .335 in./8.5 mm
- HP: 14.2 GHP
- Maximum Inlet Pressure: 125 PSI
- Minimum Inlet Pressure: 3 Ft. Water / 2.6 in. Hg.
- Plunger Bore (in / mm): .591 in / 15 mm
- Plunger Stroke: .433 in.
- Oil Capacity: 14.0 oz
- Maximum Fluid Temperature: 165°F
- Inlet Port Thread: 1/2" - 14 BSP-F
- Discharge Port Thread: 3/8" - 19 BSP-F
- Shaft Diameter: 1.0 in. / 25.4 mm
- Weight: 19.1 lbs
- Dimensions: 8.8" x 9.7" x 6.5
