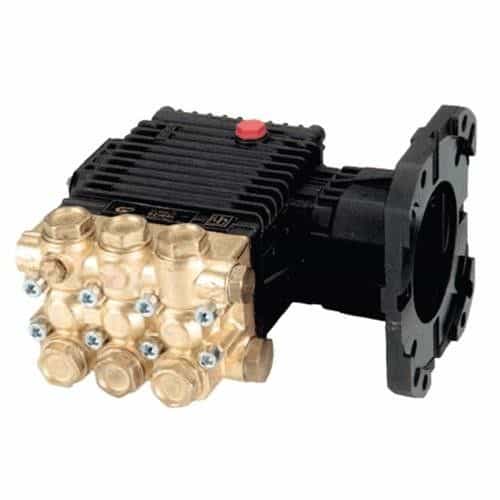

General Pump EZ3030G34 EZ Series 44G Triplex Plunger Pump, 3.0 GPM, 3000 PSI, Right Shaft

Brand:
Mfr. Model #:
EZ3030G34
KR Part #:
GPEZ3030G34
Weight:
19.10 lbs
GTIN:
682491119913
Call For Availability
MSRP
$1,270.00
Now Only!
$433.65
3200 PSI, 3400 RPM Triplex Plunger Pump featuring solid ceramic plungers, ideal for general pressure cleaning and washing applications. Features standard SAE J609 gasoline mounting flange for engines up to 13 HP. 3.0 GPM flow from a compact, right-shaft drive unit.



Technical Specifications

Bore: 15 millimeter
Crankcase Capacity: 14 ounce
Horsepower: 9.9
Inlet Port: 1/2 inch
Max PSI: 3200
Max Temperature: 165 degrees F
Shaft Diameter: 1 inch
Stroke: 7.6 millimeter
Max GPM: 3

Product Description

General Pump EZ Series 44 G Pump

Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features standard SAE J609 gasoline mounting flange for engines up to 13 HP.

Dimensions: 8.6" x 9.7" x 6.5"

Features

  • Solid ceramic plungers
  • Right shaft
  • Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
  • Die-cast, anodized aluminum, oil-bath crankcase
  • Premium roller bearing
  • Unitized stainless steel inlet and discharge valves
  • Standard SAE J609 gasoline mounting flange for engines up to 13 HP.

Specifications

  • Maximum Volume: 3.0 GPM
  • Maximum Pressure: 3200 PSI
  • Maximum Pump Speed: 3400 RPM
  • Maximum Fluid Temperature: 165° F
  • Inlet Port: 1/2"-14 BSPP-F
  • Outlet Port: 3/8"-19 BSPP-F
