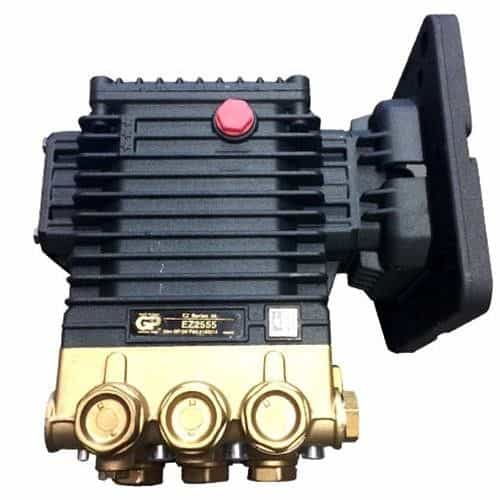

General Pump EZ2555E EZ Series 44E Triplex Plunger Pump 5.5 GPM, 2500 PSI, 3400 RPM, Right Shaft
Brand:
Mfr. Model #:
EZ2555E
KR Part #:
GPEZ2555E
Weight:
18.50 lbs
GTIN:
682491025665
Availability:
1
2500 PSI Triplex Plunger Pump featuring solid ceramic plungers, ideal for general pressure cleaning and washing applications. Features die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves. 5.5 GPM flow from a compact, flanged unit.
Technical Specifications
Bore: 15 millimeter
Crankcase Capacity: 14 ounce
Inlet Port: 1/2 inch
Max GPM: 5.5
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 3400
Shaft Diameter: 28.5 millimeter
Stroke: 13 millimeter
Product Description
General Pump EZ Series 44 E Pump
Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 1.125" hollow shaft flanged for direct couple to electric motors (NEMA-184TC).
Dimensions: 8.8" x 8.8" x 6.3"
Features
- Solid ceramic plungers
- Right shaft
- NEMA 184C mounting flange for electric motors
- Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
- Die-cast, anodized aluminum, oil-bath crankcase
- Premium roller bearing
- Unitized stainless steel inlet and discharge valves
Specifications
- Maximum Volume: 5.5 GPM
- Maximum Pressure: 2500 PSI
- Maximum Pump Speed: 3400 RPM
- Maximum Fluid Temperature: 165°F
- Inlet Port: 1/2"-14 BSPP-F
- Outlet Port: 3/8"-19 BSPP-F
