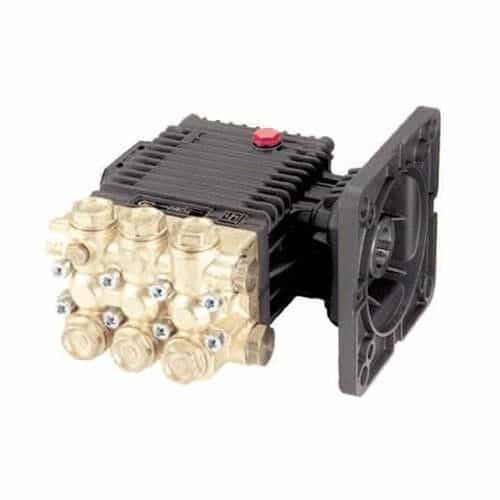

General Pump EZ2542E EZ Series 44E Triplex Plunger Pump, 4.2 GPM, 2500 PSI, Right Shaft
Brand:
Mfr. Model #:
EZ2542E
KR Part #:
GPEZ2542E
Weight:
21.00 lbs
GTIN:
682491025641
Availability:
2
2500 PSI Triplex Plunger Pump featuring solid ceramic plungers, ideal for general pressure cleaning and washing applications. Features die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves. 4.2 GPM flow from a compact, flanged unit.
Technical Specifications
Crankcase Capacity: 14 oz.
Max GPM: 4.2
Max PSI: 2500
Max Temperature: 165 degrees F
RPM: 1750
Bore: 18 millimeter
Stroke: 13 millimeter
Shaft Diameter: 28.5 millimeter
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Product Description
General Pump EZ Series 44 E Pump
Medium-duty Triplex Plunger Pump features solid ceramic plungers, die-cast, anodized aluminum, oil-bath crankcase and unitized stainless steel inlet and discharge valves for excellent reliability and durability. Compact design for ease of integration into system. Features 1.125" hollow shaft flanged for direct couple to electric motors (NEMA-184TC).
Dimensions: 8.8" x 8.8" x 6.3"
Features:
- Solid ceramic plungers
- Right shaft
- NEMA 184C mounting flange for electric motors
- Forged brass manifold with an exclusive lifetime warranty and 4:1 hydrostatic rating
- Die-cast, anodized aluminum, oil-bath crankcase
- Premium roller bearing
-
Unitized stainless steel inlet and discharge valves
Specifications:
- Maximum Volume: 4.2 GPM
- Maximum Pressure: 2500 PSI
- Maximum Pump Speed: 1750 RPM
- Maximum Fluid Temperature: 165°F
- Inlet Port: 1/2"-14 BSPP-F
- Outlet Port: 3/8"-19 BSPP-F
