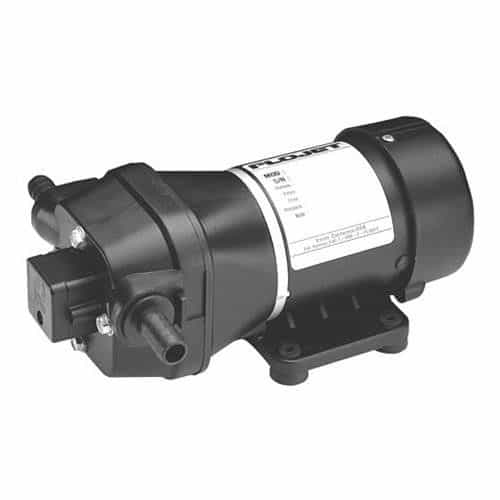

Flojet 04300142A Self-Priming Quad Diaphragm Pump - 35 PSI, 3.2 GPM, 12 VDC

Mfr. Model #:
KR Part #:
6.60 lbs
Low Stock Warning
Now Only!
This is a four-diaphragm pump with a self-priming ability. Delivers 3.2 gallons of fluid per minute. Used for water-like and viscous liquid applications.
Prep 65

Prop 65


Technical Specifications

Max GPM: 3.2
Voltage AC: 12
Max PSI: 45
Inlet Port: 3/4 inch
Outlet Port: 3/4 inch

Product Description

Flojet's 4300 DC Series pump is a quadruple diaphragm pump with a four-piston design to deliver a maximum flow rate of 3.2 GPM. Pump self-primes up to 2.4m vertical lift. Pump body is manufactured using polypropylene for chemical resistance. Utilizes quick connect plugin ports for easy installation.


  • Pump Body: Polypropylene
  • Diaphragm: Santoprene
  • Check Valve: EPDM
  • Flow Rate / Pressure: 3.2 GPM
  • Port Size: 3/4" Hose
  • Voltage: 12 VAC
  • Pressure Switch Setting: 45 PSI


  • Continuous duty applications
  • Self-primes up to 2.4m vertical lift
  • Handles Water-Like and Viscous Liquids up to 250 cP
  • Four-piston design delivers higher flow rates
  • Chemical-resistant polypropylene pump head for Iong life
  • Choice of elastomeric materials to work with many chemicals
  • Quick-connect plug-in ports for easy installation
  • Optional pressure-switch control to run the pump only as needed
