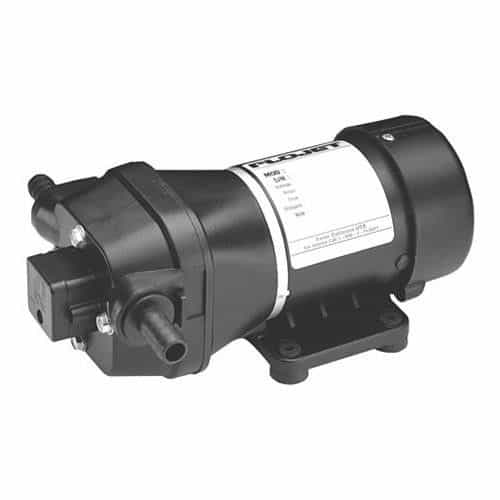

Flojet 04300525A Electric Quad Series Diaphragm Pump with 6 ft. Cord - 5 GPM, 35 PSI, 115VAC

Mfr. Model #:
KR Part #:
5.76 lbs
In Stock
Now Only!
Polypropylene body electric diaphragm pump with quick-connect 3/4" hose barb ports. Has a 6 foot power cord.
Prep 65

Prop 65


Technical Specifications

Amps: 1.5
Inlet Port: 3/4 inch
Max PSI: 35
Voltage AC: 115
Max Temperature: 130 degrees F

Product Description

Polypropylene Pump & Motor Assembly

The Flojet 04300525A pump is part of the Flojet 4300 Quad Series. This versatile pump cam be used for car wash services, water treatment, filtering, and more. It is made with chemical resistant materials including a Polypropylene body, a Viton check valve, and a Santoprene diaphragm.

The Flojet 04300525A pump includes 3/4" snap-in hose barb style ports and a 6' power cord. It has a 35 PSI maximum pressure rating and a flow rate of 5 GPM. Quiet, smooth, and safe operation!

Specifications and Benefits:

  • 5 GPM
  • 35 PSI
  • 115 volt AC
  • 3/4" hose barb inlet
  • 3/4" hose barb outlet
  • Polypropylene housing
  • Viton check valve
  • Santoprene diaphragm
  • 6' power cord
  • Snap-in ports for easy installation
  • 130° Fahrenheit maximum fluid temperature
  • Built-in pressure switch automatically starts and stops
  • Can run dry without damage
  • Excellent self-priming capability (up to 8 feet vertical)
  • Powerful magnet motor with low current draw
  • 4 piston design delivers high flow rates
  • Handles water-like and viscous liquids up to 250 cP
  • CE Certified

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to
