Keep your lines from freezing this winter without allowing free rinsing. Keeps track of external temperatures so you won't need to run water through the weep when it is above freezing. 120 VAC power requirement.
Product Description

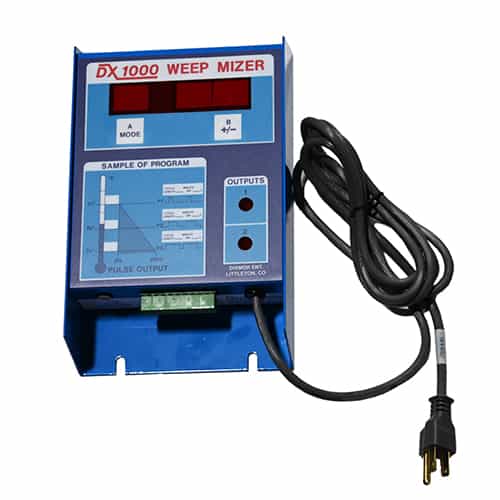

Electronic Weeping System for Car Wash
The Dixmor DX1000 Weep Mizer is an automatic microprocessor system that controls your weep system. Reliably cycles weeping on and off only when needed to save water and money. Replaces old methods using cheap thermostats to open solenoid valves, which is not nearly as efficient.Features:
- Eliminate "free" rinsing
- Cycles your weep system on and off for maximum dollar savings
- Continuous display of outside temperature for your convenience
- Automatic secondary function controlled by rise or fall of temperature
- Easy manual override of automatic operation for either output
- Use of multiple sensors possible; weep system controlled with coldest
- Battery backup to eliminate reprogramming in case of power failure
- Built in "FAIL SAFE" program for peace of mind operation
- Easily programmable with two push buttons
- Maintains memory of time temperature was below turn on point, time water actually ran, in hours, high and low temperature since last reset
- 120 volt AC power required
- 24 or 120 volt AC output voltage
- Output 1 Operation: Programmed for N.O. valve, N.C. optional
- Output 2 Operation: Standard on/off switching
- Accuracy Range: plus or minus 1/2 degree - 20 to 110
- Minimum 18 gauge for all 120 volt hookup wiring
- 3 AMP maximum fuse
- Long-life lithium batteries (installed)
Product Reviews
Frequently Asked Questions
Question:There are 4 wash bays I'd like this machine to monitor, How many water lines will it monitor and allow water to flow?
-
Aeon
(08/21/2023)
Response:Hello, this system should easily handle your 4 bays. The sensors
for the system signal the solenoid to flow when low temp trigger temp is detected. This applies to all the lines on the solenoid, so all of your weep guns will trickle.
Question:My weep mizer is running all the time even though it is not to cold
-
Dixie
(01/07/2023)
Response:This is most likely being caused by a faulty solenoid valve or temperature sensor.
Question:Does it include one sensor?
-
Mark
(12/20/2020)
Response:Yes, when purchasing the TI0100 Dixmor weepmizer the unit comes equipped with one sensor.
Question:what electric water valve to use behind weep mizer?
-
Tommy
(12/08/2020)
Response:Any Normally Open solenoid valve. The voltage of the valve would be the same as the voltage you supply to the green plug on the weep mizer.
Question:Is it already programmed
-
ELAINE
(11/29/2020)
Response:Yes, it is programmed from the manufacturer.
Question:Can you send your unit in to be checked Out and or serviced? If so, where do you send it?
-
Les
(10/19/2020)
Response:All service work is handled directly through the manufacturer Dixmor Enterprises.
We suggest that you call them prior to sending anything in for evaluation @ 888-234-9667.
Dixmor Enterprises
5755 S Gallup St.
Littleton, CO 80120
Question:Reminder reading 112° put a new sensor checked solenoid still reading 112 what’s up
-
George
(09/28/2020)
Response:Below is a link to help troubleshoot your Weep Mizer. If reading 112, most likely there is a short in the sensor.
http://dixmor.com/TIMER%20PDF/WEEP_TROUBLESHOOTING.pdf
