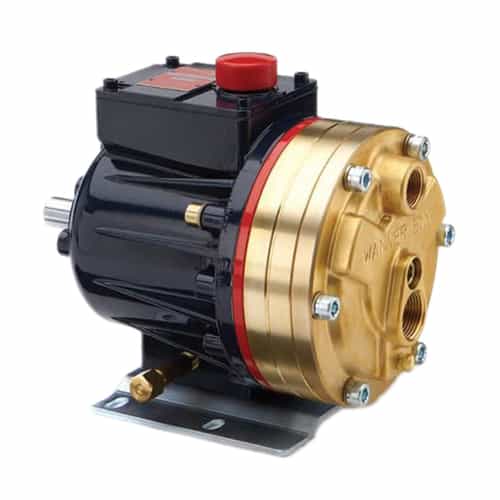

Hydra-Cell D10XKBTHFECA Belt Driven Brass Displacement Pump - 8.1 GPM, 1000 PSI

Mfr. Model #:
KR Part #:
51.80 lbs
In Stock
Now Only!
Brass head belt-driven pump with stainless steel valves. 1" x 3/4" NPT ports, 8.1 GPM, 1000 PSI.

Technical Specifications

Inlet Port: 1 inch
Max GPM: 8
Max PSI: 1000
RPM: 1450
Shaft Diameter: 7/8 inch
Max Temperature: 180 degrees F

Product Description

Seal-less D-10 Series Direct Drive Pump

The Hydra-Cell D10XKBTHFECA pump is part of the versatile line of D-10 pumps that function well in tough environments like car washes and industrial manufacturing mills. This belt-driven pump has a high-quality brass head, stainless steel valves, and Elgiloy valve springs.

The D10XKBTHFECA pump is self-priming, can run dry without damage, and can handle the full spectrum of low to high viscosity fluids. Versatile, reliable pump for a wide range of applications!


  • 8.1 GPM
  • 1450 RPM
  • Brass pump head
  • Kel-Cel NPT ports
  • 1" NPT inlet
  • 3/4" NPT outlet
  • 7/8" shaft diameter
  • Buna-N diaphragm and o-rings
  • 17-4 stainless steel valve and valve seat
  • Elgiloy valve springs
  • Celcon valve retainers
  • Tapered roll bearings
  • 10W30 standard oil
  • 1.1 quartz oil capacity
  • 500 microns maximum solids size
  • 180° Fahrenheit maximum temperature
  • Reverse shaft rotation (bi-directional)
  • Self-priming


  • Pumps the full spectrum of low-to-high viscosity fluids
  • Features a seal-less design and horizontal disk check valves that enable the pump to handle abrasives and particulates that might damage or destroy other types of pumps
  • Simple, compact design reduces initial investment and lowers maintenance costs
  • Operational efficiencies reduce energy costs
  • Able to run dry without damage or additional maintenance to the pump
  • Tolerates non-ideal operating conditions
  • Minimizes maintenance and downtime because there are no seals, packing or cups to leak or replace
