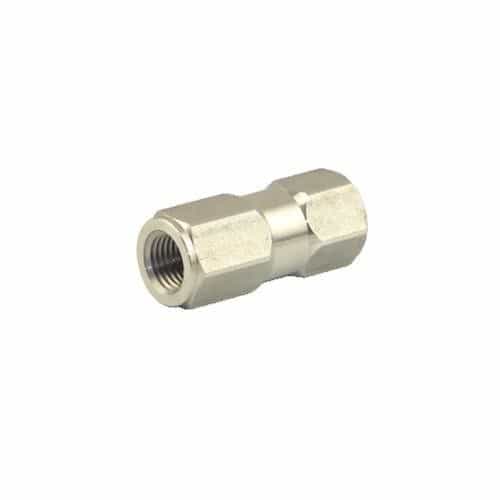

General Pump YCV14FSS 6.5 GPM 1/4in. Check Valve - 6500 PSI
Brand:
Mfr. Model #:
YCV14FSS
KR Part #:
CV0078
Weight:
0.17 lbs
GTIN:
682491027041
High-quality stainless steel check valve to keep pressured car wash water flowing in the correct direction.
Technical Specifications
Inlet Port: 1/4 inch
Max GPM: 6.5
Max PSI: 6500
Max Temperature: 195 degrees F
Product Description
Car Wash Stainless Steel 1/4" Check Valve
Featuring a solid stainless steel body construction, the General Pump YCV14FSS check valve keeps water pressure flowing in one direction without allowing backflow. It boasts an o-ring poppet that provides a leak-proof seal, has a light cracking pressure, and has stainless wetted parts.
Specifications:
- 6.5 GPM maximum volume
- 6500 PSI maximum pressure
- 195 degrees Fahrenheit maximum temperature
- 1/4" BSP-F inlet
- 1/4" BSP-F outlet
- 5.8 PSI cracking pressure
- 1.85" long
- Stainless steel body construction
