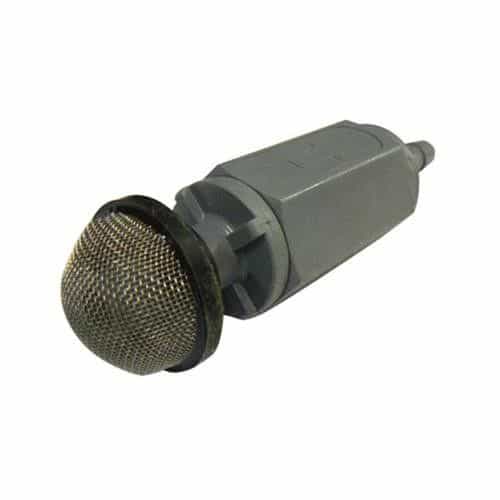

SMC 6740590 PVC Foot Valve, 1/4 In. Barb x 3/8 Barb, 40 Mesh Screen, Buna Seals

Mfr. Model #:
KR Part #:
0.07 lbs
In Stock
Now Only!
426 Series PVC foot valve includes a 40-mesh stainless screen on inlet end. Features Buna-N seals, 302 SS spring, and 316 SS ball. Maximum pressure of 125 PSI. 1/4" barb x 3/8" barb.
Prep 65

Prop 65


Product Description

Foot Valve with 40 Mesh Strainer

Prevent potential equipment damage and contamination, as well as reducing water hammer likelihood, by eliminating back flow and maintaining constant back-pressure in your car wash systems with the 6740590 426 series foot valve. Features 40 mesh stainless suction screen on inlet end to filter out particulates from the inflow of chemicals and water. Lightweight PVC construction makes it easy to integrate into your system. Buna-N seals plus SS ball and spring provide for excellent lifespan across a range of chemicals.
  • Inlet: 1/4" Hose Barb with Integrated Mesh Strainer
  • Outlet: 3/8" Hose Barb
  • Max Pressure: 125 PSI
  • Activation Pressure: 1 PSI
  • Maximum Temperature: 140°F

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm (For more information go to
