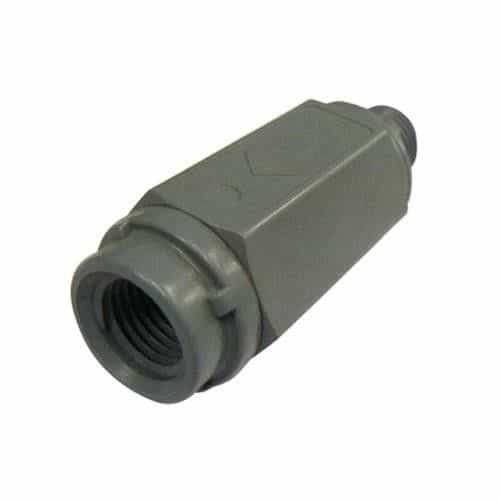

SMC 5722790 Series 426 PVC Check Valve - 1/4 Inch MNPT x 1/4 Inch FNPT, 125 PSI

Brand:
Mfr. Model #:
5722790
KR Part #:
CV0062
Weight:
0.06 lbs
In Stock
MSRP
$12.98
Now Only!
$6.49
A check valve for car washes that is engineered to operate when installed in any orientation. Measures 1/4" MNPT x 1/4" FNPT. Flows from male end to female end.



Technical Specifications

Inlet Port: 1/4 inch
Outlet Port: 1/4 inch
Max PSI: 125
Min PSI: 1
Max Temperature: 140 degrees F

Product Description

1/4" Check Valve

The SMC 5722790 is a 426 Series check valve that is used to prevent potential equipment damage and contamination, as well as reducing water hammer likelihood, by eliminating back flow and maintaining constant back-pressure in your car wash systems. Designed to operate in any position. Equipped with 1/4" MNPT x 1/4" FNPT connections. Housing is made with PVC, EPDM seal, 302 stainless steel spring and 316 stainless steel ball.

Specifications:
  • Size: 1/4"
  • Connection: MNPT x FNPT
  • Material: PVC
  • Flows from male to female
  • Component Materials:
    • Seal: EPDM
    • Spring: 302 Stainless Steel
    • Ball: 316 Stainless Steel
  • Able to operate in any position
  • Not for vacuum
  • Cracking Pressure 1 PSI
  • Maximum Pressure: 125 PSI
  • Maximum Temperature: 140°F
  • NSF Listed
