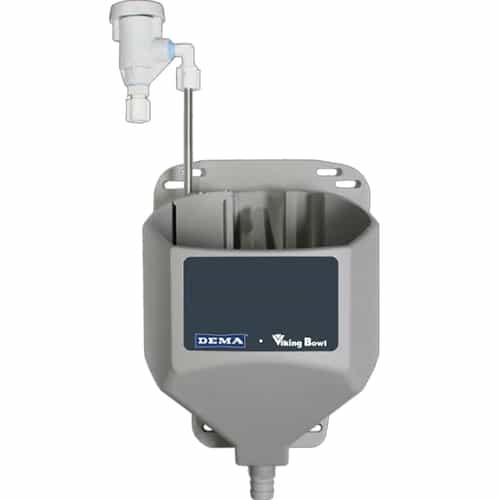

Viking Laundry and Warewash Detergent Mixing Bowl

Boost cleaning performance with the Dema Viking 5801V detergent bowl. It is designed to quickly dissolve encapsulated powder and solid products and deliver a ready-to-use solution directly to your laundry or warewash machines. Dema designed the strainer mesh assembly so it is easy to remove and clean, making maintenance fast and hassle-free. The Viking bowl accepts a 6-inch diameter chemical capsule or 6-inch jugs with a 100mm neck. Molded in flood line helps you tell if the vacuum breaker is mounted properly, plus it meets ASSE 1001 standards. The polypropylene body is durable and has impressive chemical resistance that extends its longevity. This model features a plastic vacuum breaker.

This mixing bowl requires a minimum water pressure of 15 PSI for proper operation. Do not exceed 40 PSI or a maximum water temperature of 140°F.

Specifications:

• Dema Product Number: 5801V
• KR Product Number: IN5801V
• Water Pressure:
• Minimum: 15 PSI
• Maximum: 40 PSI
• Maximum Water Temperature: 140 degrees Fahrenheit
• Water Line: ¼"
• Outlet: 5/8" ID X 7/8" OD

Includes:

• Plastic Vacuum Breaker
• 1/4" plastic compression water supply connection
• Mounting hardware
• Comes with a Standard Spray Nozzle installed

Note: Other nozzles listed in the manual and installation instructions MUST be purchased separately.

Features and Benefits:

• Accepts standard 6” jug with a 100mm neck
• Universal mounting bracket allows the detergent bowl to be placed on top of dish machine
• Accepts 6-inch diameter chemical capsules
• Durable molded polypropylene body
• Molded in flood line indicates proper mounting of the vacuum breaker, and meets ASSE 1001 standards
• The spray and strainer mesh assembly is easy to remove for cleaning
