AR North America RK1528HN-SX Solid Left Shaft Pump - 3.96 GPM, 4000 PSI, 1450 RPM
Brand:
Mfr. Model #:
RK1528HN-SX
KR Part #:
ARRK1528HN-SX
Weight:
20.60 lbs
Out of stock - Pre-Order Now!
The RK1528HN-SX is a solid shaft commercial triplex plunger pump from AR North America. It reaches a maximum pressure of 4000 PSI and 3.96 GPM. N version with a gas engine flange. Left shaft.
Technical Specifications
Max GPM: 3.96
Max PSI: 4000
Inlet Port: 1/2 inch
Outlet Port: 3/8 inch
Stroke: 14.6 millimeter
Crankcase Capacity: 15 ounce
Shaft Diameter: 24 millimeter
Max Temperature: 140 degrees F
Bore: 18 millimeter
Product Description

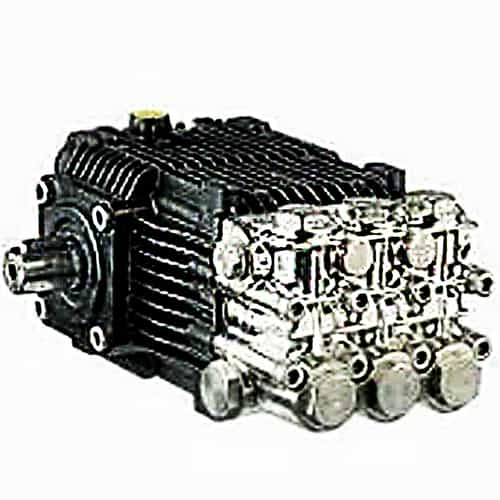

AR North America RK1528HN-SX Pump
AR RK Series plunger pumps are great for high-pressure washing applications. The RK1528HN-SX model includes thick solid ceramic plungers for long life and durability. It is designed for gearbox, belt drive, or coupling drive systems, electric motor 182-184 frame driven systems, or gasoline engine driven systems. It features anodized, precision cast cooling fins for maximum heat dissipation. Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life. This is a left-shaft version of the RK1528HN Pump.
Specifications
- One-piece connecting rods for strength
- Ultra Form valve cages for long life
- Maximum flow: 3.96 GPM
- Maximum pressure: 4000 PSI
- Power: 11 EBHP
- Discharge thread: 3/8" F
- Solid shaft (left side)
- AR North America model # RK1528HN-SX
