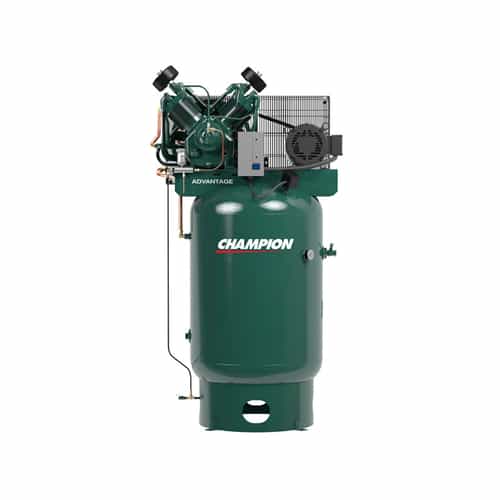

Champion VR10-12 Advantage Reciprocating 120-Gallon Air Compressor
Brand:
Mfr. Model #:
VR10-12
KR Part #:
ACVR1012-3
Weight:
0.00 lbs
Usually Drop Ships in 4 Weeks
Looking for the perfect 120-gallon compressor for your equipment room? The Champion VR10-12 is an excellent choice for air-operated pumps, pneumatic equipment, air tools, and basically anything else at your car wash that requires compressed air. Its 120-gallon tank size and vertical mounting make it compact and space-efficient, yet it still comes with all the convenient functionality that an active small business needs. 10 HP, 175 PSI, 33.8 CFM, 718 RPM.
Freight Only
DROP SHIP
Technical Specifications
Voltage AC: 230
Phase: Three
Max PSI: 175
RPM: 718
CFM: 33.8
Product Description
Champion 120-Gallon Air Compressor
The Champion VR10-12 is a reciprocating air compressor with a 120-gallon tank capacity and a heavy duty two-stage pump. It's an ideal size for small business such as car washes, paint shops, and other industrial shops that require significant power and functionality with a compact footprint. The VR10-12 is vertically mounted, which is helpful in equipment rooms that don't have a lot of extra space. This compressor has a reputation for being reliable and easy to maintain, provided you keep up with routine oil changes.
Technical Specifications
- Tank Capacity: 120 gallons
- Motor: 10 horsepower
- Phase: 3
- PSI Rating: 175
- RPM: 718
- CFM Delivery: 33.8
- Tank Position: Vertical
- Voltage: 230
- Dimensions: 43" x 30" x 81"
- Weight: 895 lbs
- Type: Reciprocating, stationary (not portable)
- Champion SKU: VR10-12
Features
- Heavy Duty 2 Stage, Splash Lubricated Air Compressor Pump
- Multi-Finned Cylinders
- Integral Cylinder Head
- Intercoolers for Cooling Between Stages
- Reliable High Flow Disc Valves
- Oversized Main Bearings
- Balanced Crankshaft
- Oil Level Site Glass
- Centrifugal Unloader for Loadless Starting
- Durable cast-iron construction
- ASME Code Air Receiver: Pressure Relief Valve, Service Valve, Drain Valve, Pressure Gauge
- Oversized Inlet Filter
- Mounted Control Panel
- Automatic Electric Timed Drain
- Vibration Isolators
- Low-Oil Stop Control
Warranty Information
Standard
This compressor includes Champion's standard warranty. It covers parts and labor on the package components for one year, and the compressor pump for three years.
Premium Extended
Champion also offers their Premium Warranty Kit if you want to receive extended warranty protection. This offer doubles the coverage with an additional three years of warranty on the compressor pump (parts & labor), providing SIX YEARS of worry-free coverage. It also provides an extra 12 months of coverage on the package for a total of 24 months.
How a Reciprocating Air Compressor Works
Champion's VR10-12 is a reciprocating air compressor. These types of air compressors operate on the principle of reciprocation, or moving something back and forth. They use positive displacement, meaning that when air is mechanically reduced, there is a corresponding pressure increase.
A rotor spins, causing a piston to move up and down. When the piston goes down, air pulls into a chamber. As the piston moves back up, the air is compressed and forced out. The compressed air is then used immediately by a pneumatic machine or stored in a compressed air tank.
